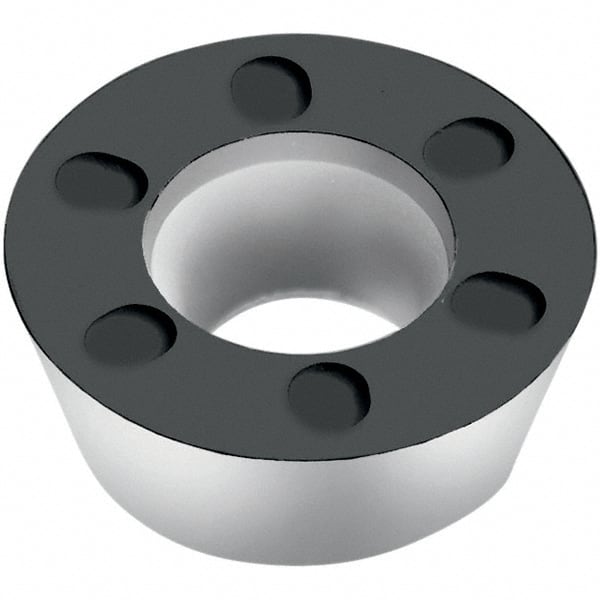

RDHW0803M0-A57 WHH15 Carbide Milling Insert TiAlN Finish, 0.1252″ Thick
Item #: 16279945
Brand: Walter
Model #: 8159201
Product Specifications
| Insert Style | RDHW |
| Insert Size Code | 08 |
| Insert Size | 0803M0 |
| Insert Material | Solid Carbide |
| Material Grade | P15; H15; K15 |
| Manufacturer Grade | WHH15X |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Inscribed Circle (mm) | 8.00 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Corner Radius (Decimal Inch) | 0.1570 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Insert Hand | Neutral |
| Relief Angle | 15.00 |
| Series | RDHW |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Cutting Edge Effective Length (mm) | 8.00 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material | Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K |
| Ansi Code | RDHW0803M0-A57 WHH15 |
| Iso Code | RDHW0803M0-A57 WHH15 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | RDHW0803M0-A57 |
| Chip Breaker | A57 |
| Shape | Round |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
