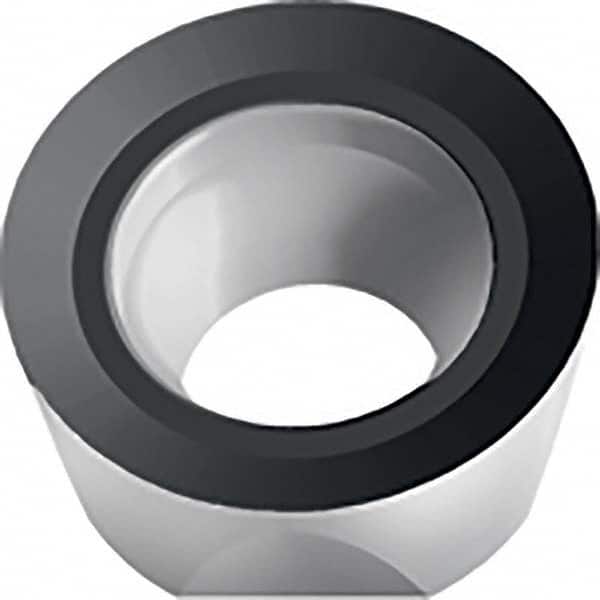

ROMX0803M0-D57 WSP45S Carbide Milling Insert TiAlN/Al2O3 Finish, 0.315″ Long x 1/8″ Thick
Item #: 16278962
Brand: Walter
Model #: 8132879
Product Specifications
| Insert Style | ROMX |
| Insert Size Code | 08 |
| Insert Size | 0803M0 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSP45G |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Inscribed Circle (mm) | 8.00 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Corner Radius (Decimal Inch) | 0.1570 |
| Corner Radius (mm) | 3.99 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Insert Hand | Neutral |
| Relief Angle | 0.00 |
| Series | ROMX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (mm) | 8.00 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Super-Alloys & Titanium; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | ROMX0803M0-D57 WSP45S |
| Iso Code | ROMX0803M0-D57 WSP45S |
| Standards | ISO; ANSI |
| Chip Breaker | D57 |
| Shape | Round |
| Single or Double Sided Insert | Single |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Length (Decimal Inch - 4 Decimals) | 0.3150 |
