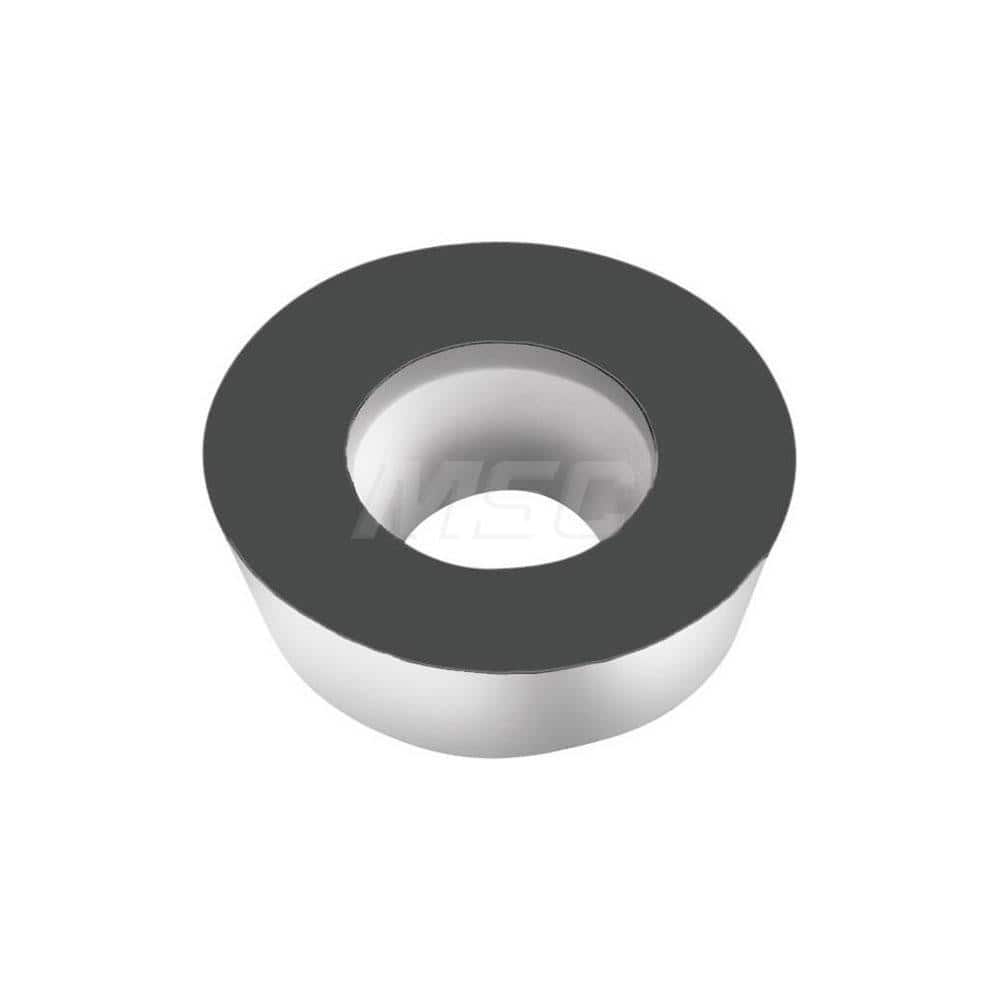

Milling Insert: RDHX0501M0-A57 WKK25S, WKK25S, Solid Carbide N/A Finish,
Item #: 16278756
Brand: Walter
Model #: 7988265
Product Specifications
| Insert Style | RDHX |
| Insert Size Code | 05 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WKK25S |
| Inscribed Circle (Decimal Inch) | 0.1970 |
| Thickness Range (Decimal Inch) | 0.0000 to 0.1000 |
| Corner Radius (Decimal Inch) | 0.0980 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Insert Hand | Neutral |
| Relief Angle | 15.00 |
| Series | RDHX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.0850 |
| Cutting Edge Effective Length (mm) | 5.00 |
| Insert Shape | Round |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Iso Code | RDHX0501M0-A57 WKK25S |
| Chip Breaker | A57 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.0580 |
