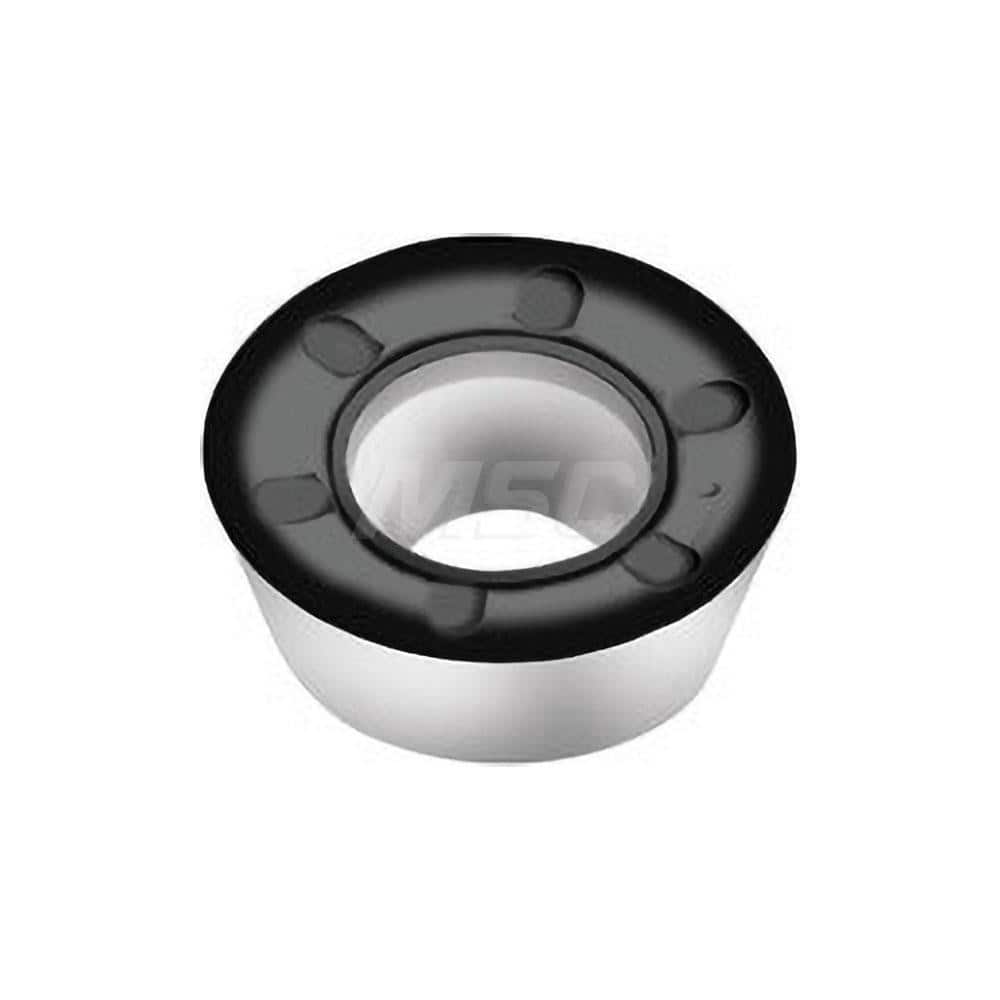

Milling Insert: RDMX07T1M0-D57 WKK25S, WKK25S, Solid Carbide N/A Finish,
Item #: 16278533
Brand: Walter
Model #: 7988347
Product Specifications
| Insert Style | RDMX |
| Insert Size Code | 07 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WKK25S |
| Inscribed Circle (Decimal Inch) | 0.2760 |
| Thickness Range (Decimal Inch) | 0.0000 to 0.1000 |
| Corner Radius (Decimal Inch) | 0.1380 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Insert Hand | Neutral |
| Relief Angle | 15.00 |
| Series | RDMX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Cutting Edge Effective Length (mm) | 7.00 |
| Insert Shape | Round |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Iso Code | RDMX07T1M0-D57 WKK25S |
| Chip Breaker | D57 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.0760 |
