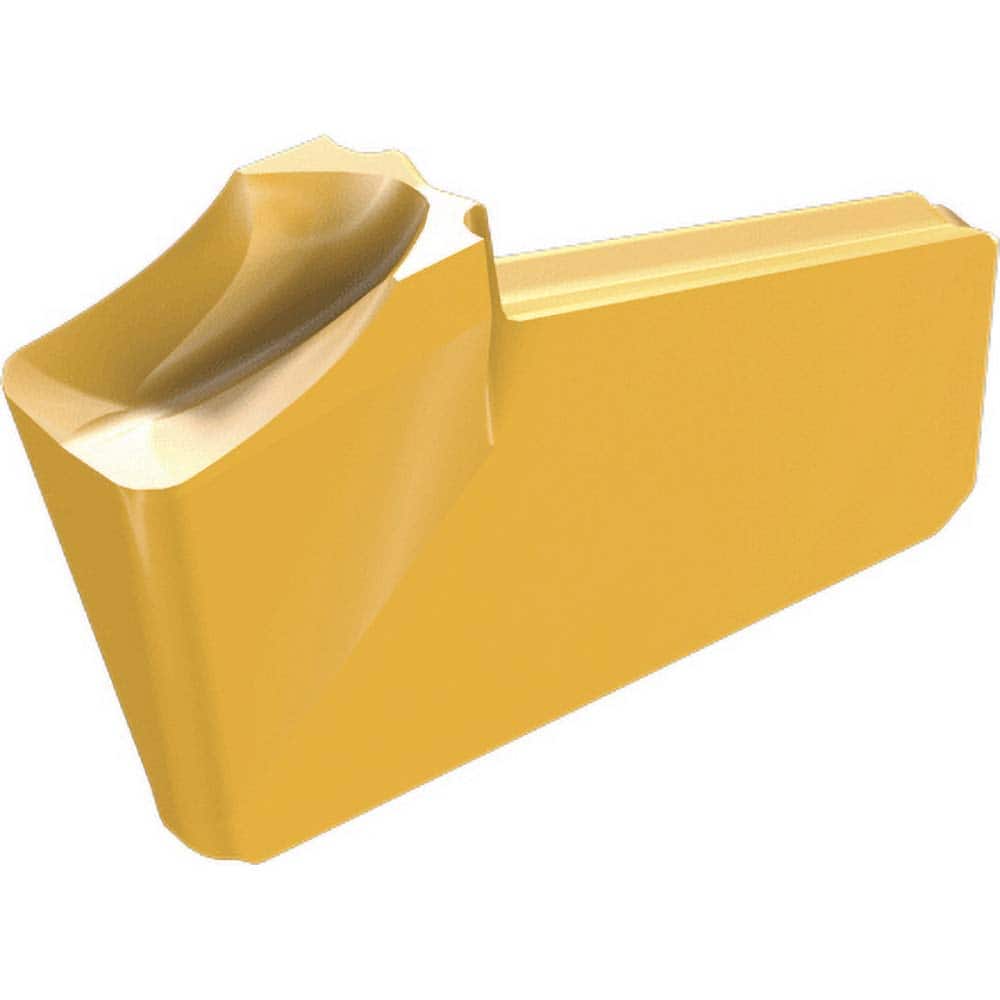

Grooving Insert: GFT0.0314 IC1028, Solid Carbide TiAlN & TiN Finish, Neutral, 0.0314″ Cutting Width, Series SlimGrip
Item #: 16044257
Brand: Iscar
Model #: 3337188
Product Specifications
| Insert Style | GFT |
| Insert Size Code | 08J01 |
| Insert Size | 0.0314 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC1028 |
| Cutting Width (Decimal Inch) | 0.0314 |
| Cutting Width (mm) | 0.80 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.08 |
| Corner Radius (Decimal Inch) | 0.0031 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning; Parting |
| Series | SlimGrip |
| Coating Process | PVD |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Coating/Finish | TiN; TiAlN |
| Single Or Double End | Single |
