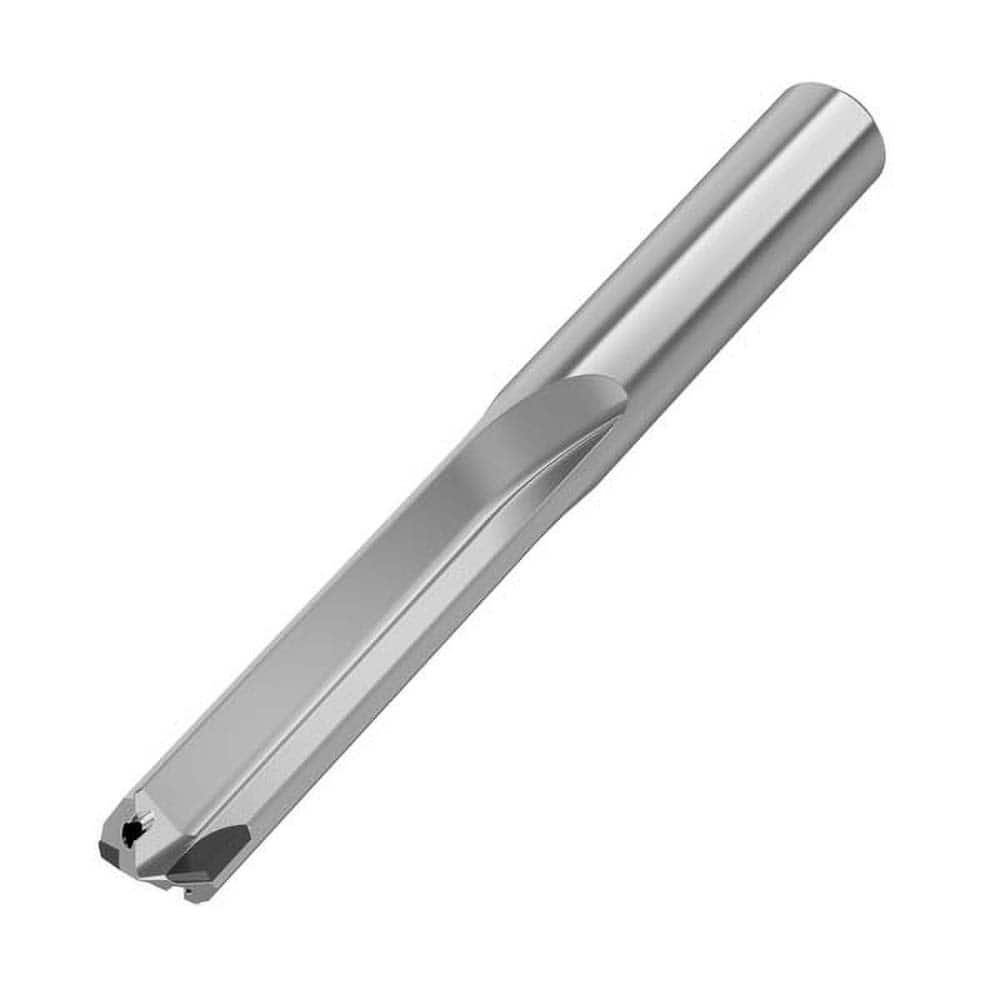

Jobber Length Drill Bit: 0.25″ Dia, 140 °, Solid Carbide Bright/Uncoated, 3.248″ OAL, Right Hand Cut, Straight Flute, Straight-Cylindrical Shank
Item #: 15663685
Brand: Kennametal
Model #: 6761198
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2500 |
| Drill Bit Size (Inch) | 1/4 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Uncoated |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Straight |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (Decimal Inch) | 3.2480 |
| Flute Length (Decimal Inch) | 1.7126 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 1/4 |
| Maximum Drilling Depth (Decimal Inch) | 1.3740 |
| Shank Length (Decimal Inch) | 1.4370 |
| Drill Point Length (Decimal Inch) | 0.0423 |
| Drill Bit Grade | KD1415 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
