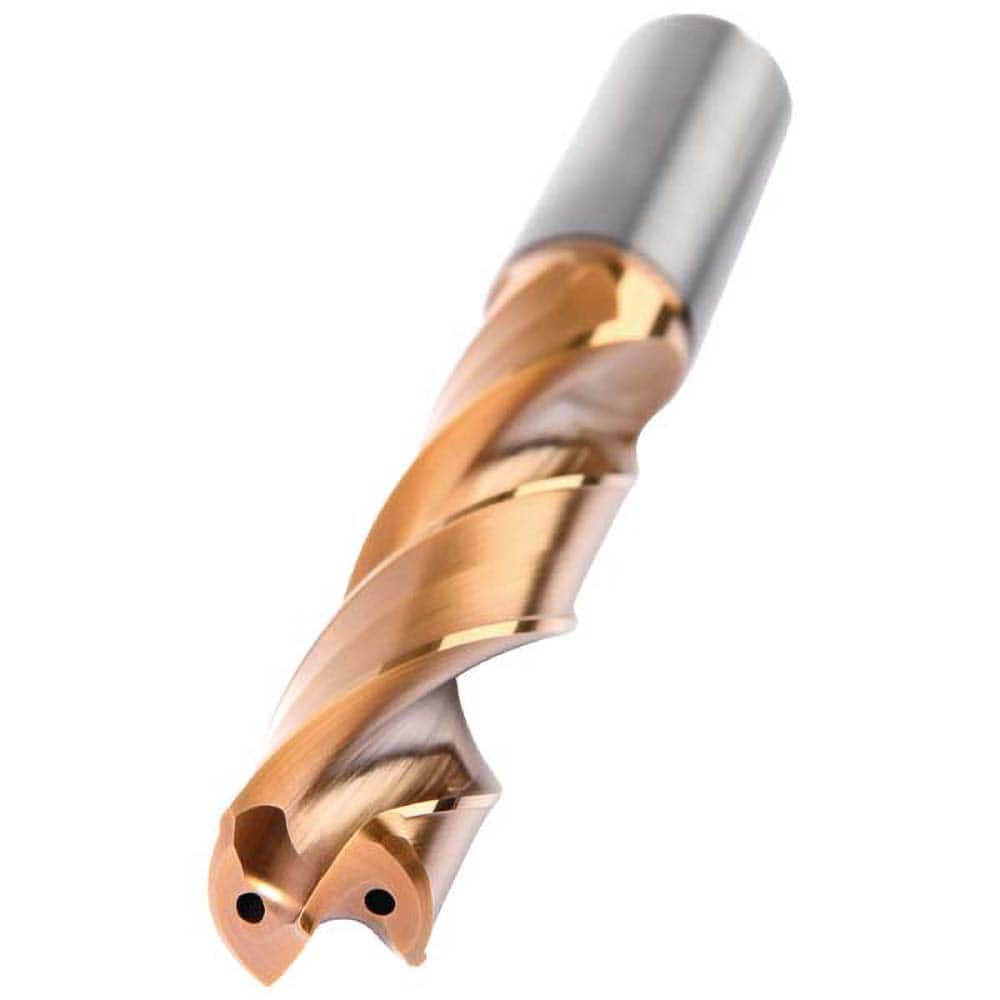

Taper Length Drill Bit: 0.5625″ Dia, 143 ° AlTiN Finish, 5.12″ Flute Length, 7.03″ OAL, RH Cut, Helical Flute, Straight Shank, Series K256
Item #: 15663149
Brand: Kennametal
Model #: 6782634
Product Specifications
| Drill Bit Size (Inch) | 9/16 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Shank Type | Straight |
| Flute Type | Helical |
| Coolant Through | Yes |
| Drill Point Angle (Degrees) | 143 |
| Overall Length (Inch) | 7.0300 |
| Shank Diameter (Inch) | 9/16 |
| Drill Bit Size (Decimal Inch) | 0.5625 |
| Flute Length (Decimal Inch) | 5.1200 |
| Flute Length x Diamter Ratio | 8xD |
| Overall Length (Decimal Inch) | 7-1/32 |
| Cutting Direction | Right Hand |
| Series | K256 |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (Decimal Inch) | 4.5000 |
| Shank Length (Decimal Inch) | 1.7900 |
| Drill Point Length (Decimal Inch) | 0.1650 |
| Drill Bit Grade | KCK10A |
| Material Application3 | Cast Iron |
