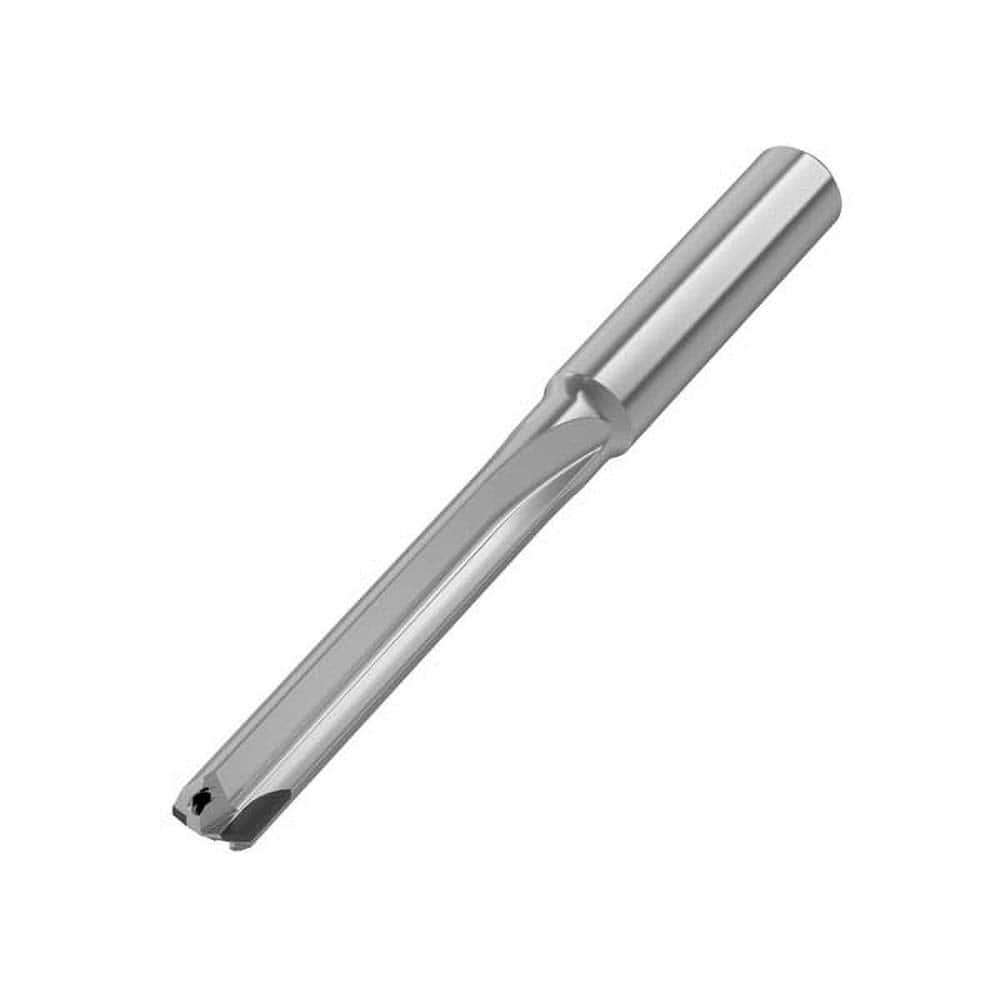

Jobber Length Drill Bit: 0.7874″ Dia, 140 °, Solid Carbide Bright/Uncoated, 6.0433″ OAL, Right Hand Cut, Straight Flute, Straight-Cylindrical Shank
Item #: 15661580
Brand: Kennametal
Model #: 6761196
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.7874 |
| Drill Bit Size (mm) | 20.00 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Uncoated |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Straight |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (Decimal Inch) | 6.0433 |
| Flute Length (mm) | 101.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 20.00 |
| Maximum Drilling Depth (mm) | 77.00 |
| Shank Length (mm) | 50.00 |
| Drill Point Length (mm) | 3.40 |
| Drill Bit Grade | KD1415 |
| Drill Bit Size Range (Decimal Inch) | 0.6500+ |
| Drill Bit Size Range (mm) | 15.00 |
