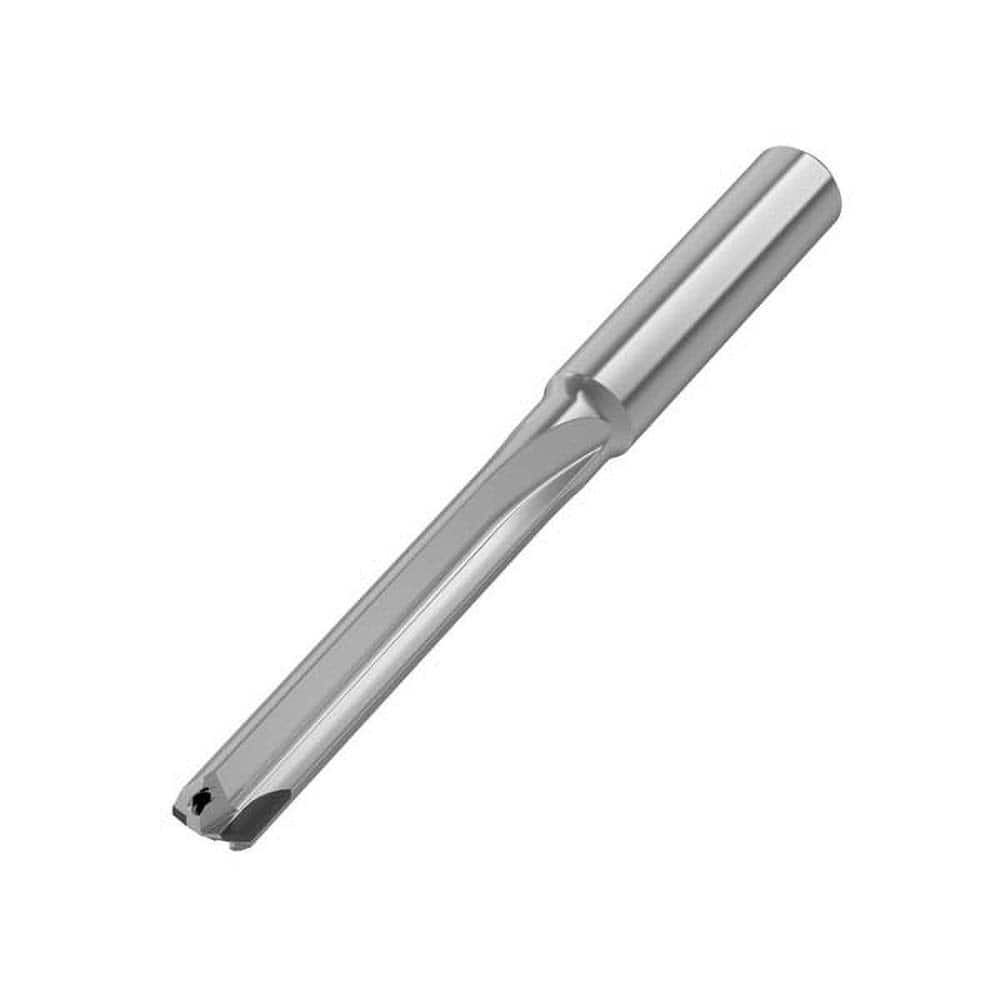

Jobber Length Drill Bit: 0.6102″ Dia, 140 °, Solid Carbide Bright/Uncoated, 5.2559″ OAL, Right Hand Cut, Straight Flute, Straight-Cylindrical Shank
Item #: 15660921
Brand: Kennametal
Model #: 6761187
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.6102 |
| Drill Bit Size (mm) | 15.50 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Uncoated |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Straight |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (Decimal Inch) | 5.2559 |
| Flute Length (mm) | 83.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 16.00 |
| Maximum Drilling Depth (mm) | 63.00 |
| Shank Length (mm) | 48.00 |
| Drill Point Length (mm) | 2.64 |
| Drill Bit Grade | KD1415 |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Drill Bit Size Range (mm) | 15.00 |
