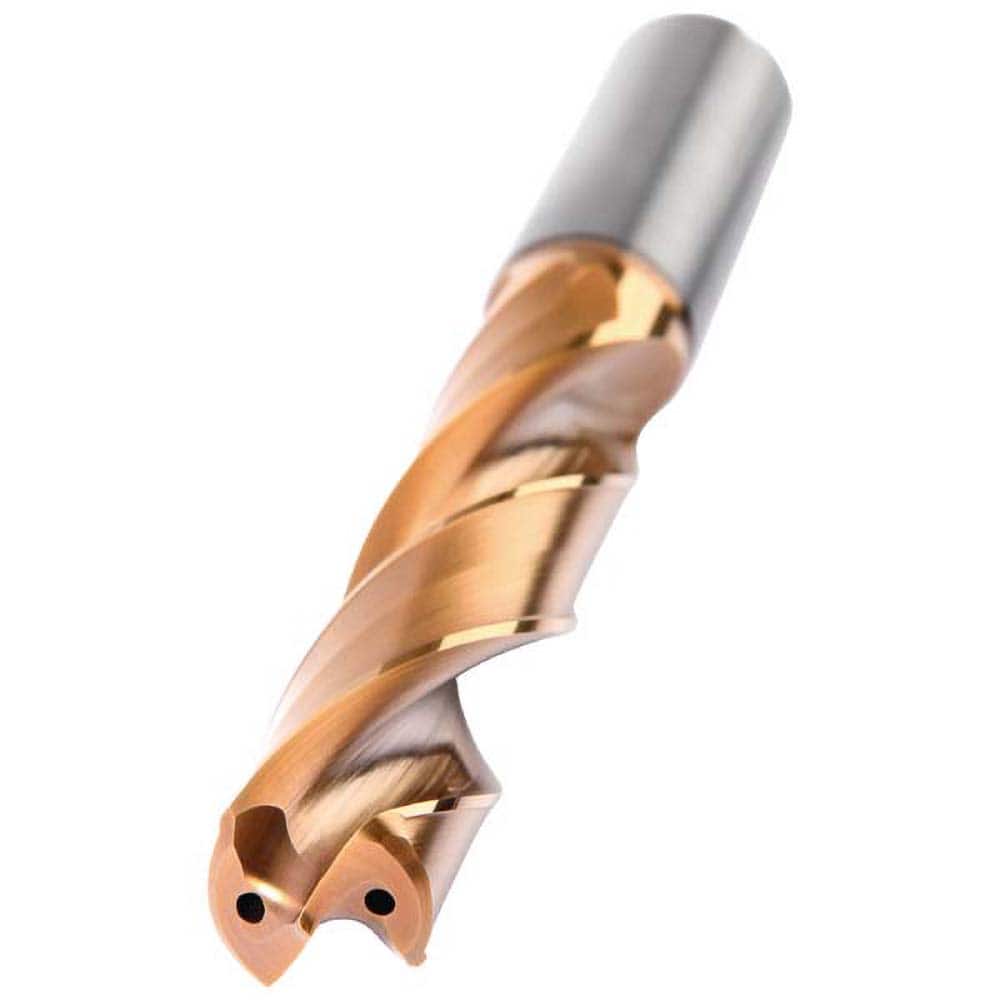

Taper Length Drill Bit: 0.4094″ Dia, 143 ° Coated, RH Cut, Helical Flute, Straight Shank, Series B256
Item #: 15659246
Brand: Kennametal
Model #: 6783437
Product Specifications
| Drill Bit Size (mm) | 10.40 |
| Tool Material | Solid Carbide |
| Coating/Finish | Coated |
| Flute Length (mm) | 110.00 |
| Shank Type | Straight |
| Flute Type | Helical |
| Coolant Through | Yes |
| Drill Point Angle (Degrees) | 143 |
| Overall Length (mm) | 158.00 |
| Shank Diameter (mm) | 12.00 |
| Drill Bit Size (Decimal Inch) | 0.4094 |
| Flute Length x Diamter Ratio | 8xD |
| Cutting Direction | Right Hand |
| Series | B256 |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 96.00 |
| Shank Length (mm) | 45.00 |
| Drill Bit Grade | KCK10A |
