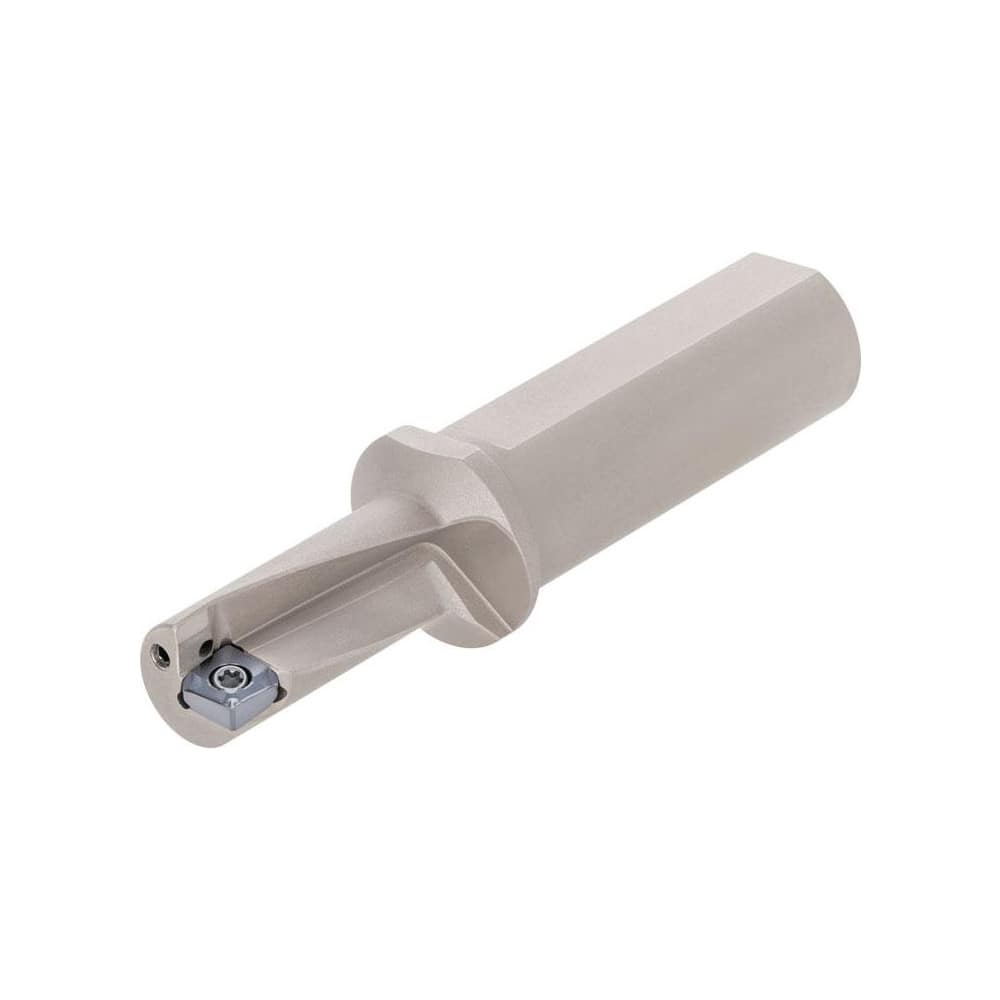

Indexable Insert Drills; Drill Style: TBM; Maximum Drill Diameter (mm): 10.00; Maximum Drill Depth (mm): 22.50; Shank Type: Flatted; Shank Diameter (Inch): 12; Shank Diameter (Decimal Inch): 12.0000; Shank Diameter (mm): 12.00; Number of Drill Inserts: 1;
Item #: 15144447
Brand: Tungaloy
Model #: 6776614
Product Specifications
| Drill Style | TBM |
| Maximum Drill Diameter (mm) | 10.00 |
| Maximum Drill Depth (mm) | 22.50 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 12 |
| Shank Diameter (Decimal Inch) | 12.0000 |
| Shank Diameter (mm) | 12.00 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Left Hand |
| Maximum Drill Depth Range (mm) | 0.00 to 50.00 |
| Tool Material | Steel |
| Compatible Insert Style | XOMU |
| Compatible Insert Size Code | 05 |
| Drill Depth by Diameter Ratio | 2.25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 69.95 |
| Series | TBM |
| Body Length | 28.45 |
| Shank Length (mm) | 41.50 |
| Coolant Hole Thread Size | 5/16-24 UNF |
| Tool Application | Drilling |
| Coolant Through | Yes |
