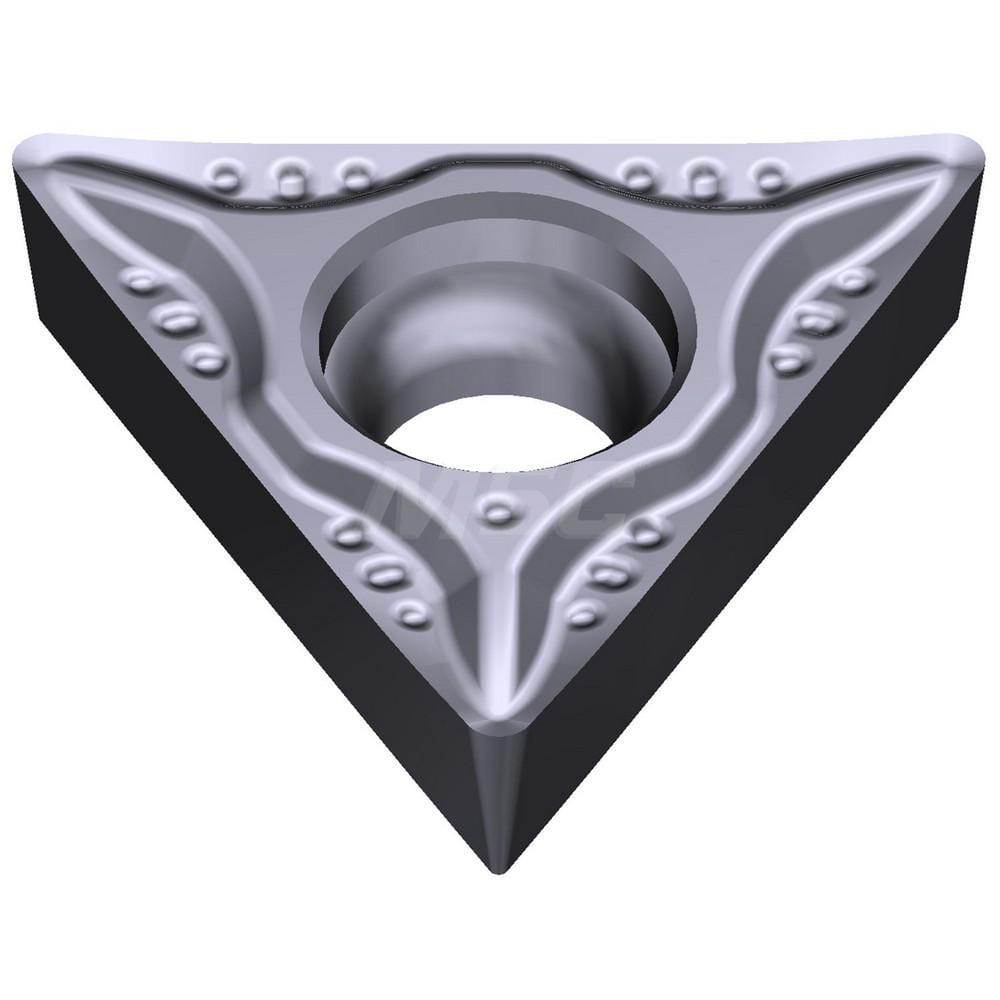

Turning Insert: TCGT21.51MESI AC5005S, Solid Carbide Absotech Finish, 0.4331″ Long, 1/4″ Inscribed Circle, 0.0157″ Corner Radius, 60.0 ° N/A Series AC5005S
Item #: 14599401
Brand: Sumitomo
Model #: 1NW2015
Product Specifications
| Insert Style | TCGT |
| Insert Shape Code | T |
| Insert Size Code | 21.51 |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5005S |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Holding Method | Screw |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Series | AC5005S |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4331 |
| Iso Code | TCGT110204MN-SI |
| Manufacturers Catalog Number | TCGT21.51MESI-AC5005S |
| Chip Breaker | MESI |
| Coating/Finish | Absotech |
