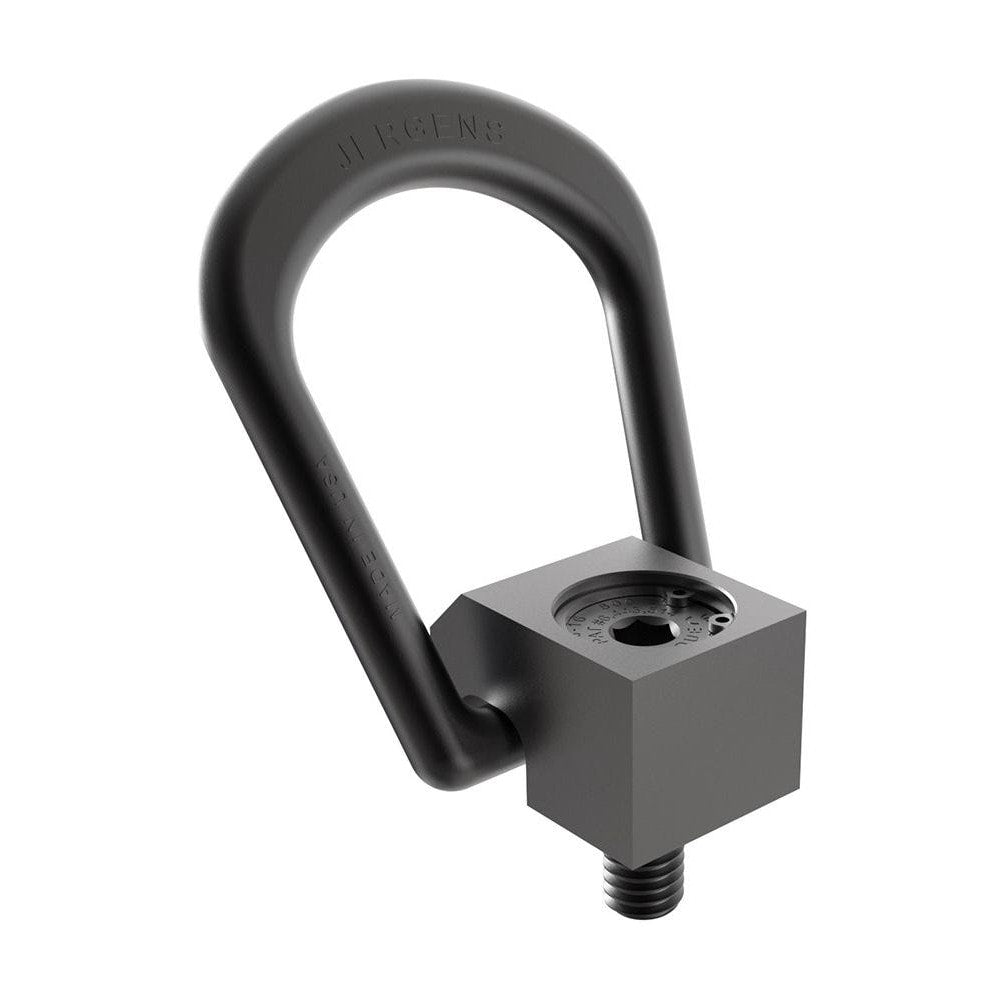

Swivel Hoist Ring: Bolt-On, 800 lb Capacity, 360°
Item #: 06557730
Brand: Jergens
Model #: 47801
Product Specifications
| Hoist Ring Type | Swivel |
| Load Capacity (Lbs) | 800 |
| Thread Size | 3/8-16 |
| Radius (mm) | 25.4 |
| Radius (Decimal Inch) | 1 |
| Ring Height (mm) | 75.44 |
| Ring Height (Decimal Inch) | 2.97 |
| Material | Alloy Steel |
| Ring Thickness (mm) | 8 |
| Ring External Width (Inch) | 2.375 |
| Ring Internal Width (mm) | 44.45 |
| Ring Internal Width (Inch) | 1.75 |
| Movement Type | 360° |
| Finish | Black Oxide |
| Material Grade | Alloy Steel |
| Mount Type | Bolt-On |
| Number Of Mounting Holes | 1 |
| Standards | ASTM E1444 |
| Ring Opening (Decimal Inch) | 2.06 |
| Ring Outside Diameter (Decimal Inch) | 2.375 |
| Ring Width (mm) | 60 |
| UNSPSC Code | 24101600 |
| Ring Width (Inch) | 2-3/8 |
| Hex Size (Inch) | 3/8 |
| Ring Width (Decimal Inch) | 2.375 |
| Mounting Surface Diameter (Decimal Inch) | 0.38 |
| Clevis Height (mm) | 24 |
| Head/Holder Diameter (Fractional Inch) | 1 |
| Clevis Width (Inch) | 1 |
| Mounting Surface Diameter (mm) | 9.65 |
| Clevis Height (Inch) | 15/16 |
| Clevis Width (mm) | 25 |
| Ring Opening (mm) | 52.39 |
