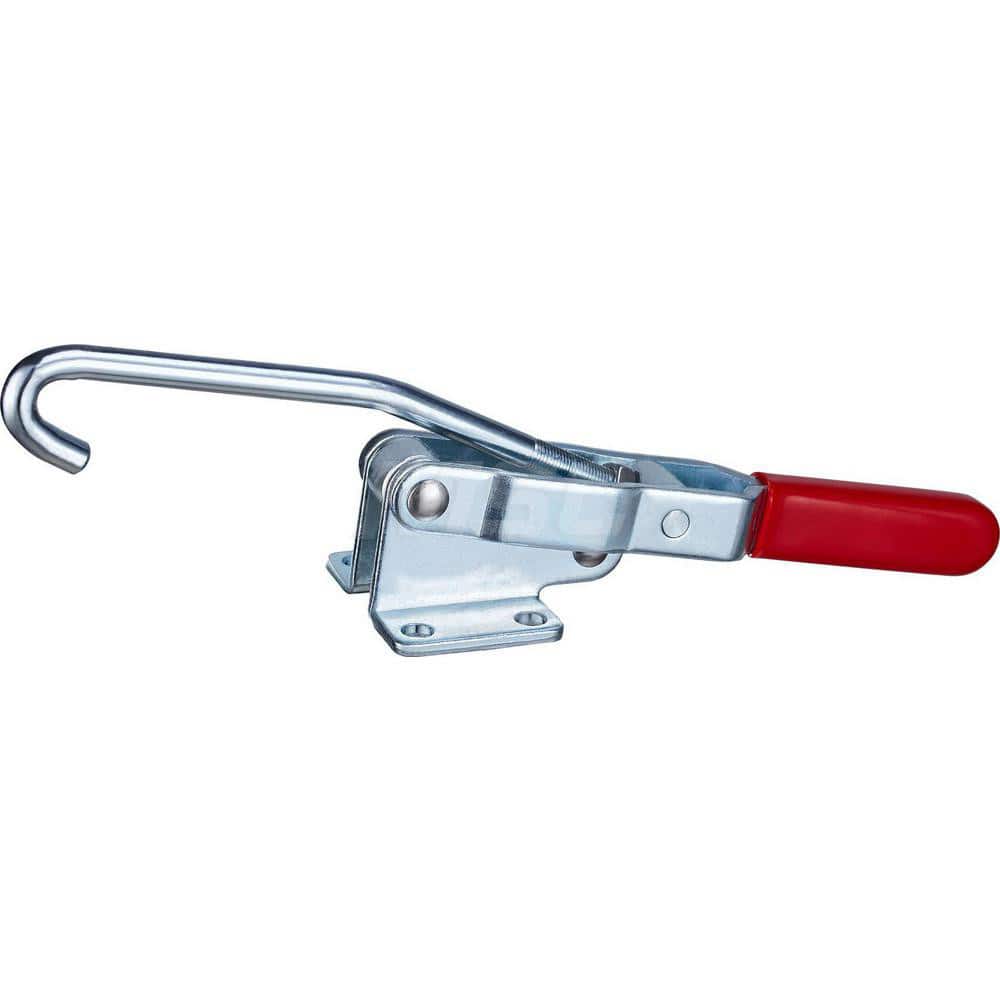

Pull-Action Latch Clamp: Vertical, 750 lb, J-Hook, Flanged Base 11.22″ OAL, Straight Handle, Steel
Item #: 14530190
Brand: ShopForce
Model #: 40100
Product Specifications
| Clamping Orientation | Vertical |
| Bar Style | J-Hook |
| Load Capacity (N) | 3336.16 |
| Load Capacity (Lb. - 3 Decimals) | 750.00 |
| Base Style | Flanged |
| Material | Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 11.2200 |
| Overall Length (mm) | 285.00 |
| Overall Height (Mm - 5 Decimals) | 57.40 |
| Overall Height (Decimal Inch) | 2.2600 |
| Handle Color | Red |
| Base Length | 1.88 |
| Base Length (mm) | 47.75 |
| Base Width (Inch) | 2.5900 |
| Base Width | 65.79 |
| Mounting Hole Diameter (mm) | 8.64 |
| Mounting Hole Diameter | 0.3400 |
| Width Distance Between Mount Holes (mm) | 49.28 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.2500 |
| Length Distance Between Mount Holes (mm) | 31.75 |
| Width Distance Between Mounting Holes | 1.9400 |
