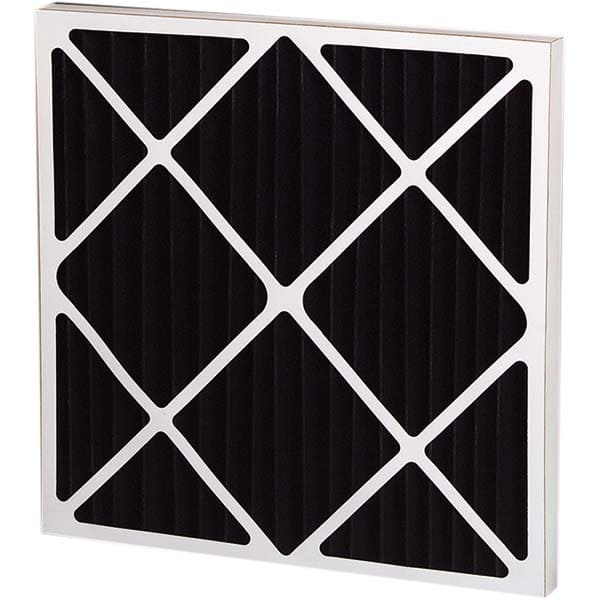

PRO-SOURCE - Pleated & Panel Air Filters; Filter Type: Carbon ; Nominal Height (Inch): 24 ; Nominal Width (Inch): 24 ; Nominal Depth (Inch): 2 ; MERV Rating: 6 ; Media Material: Synthetic
Item #: 14276638
Brand: PRO-SOURCE
Model #: PRO16336
Product Specifications
Pleated & Panel Air Filters; Filter Type: Carbon ; Nominal Height (Inch): 24 ; Nominal Width (Inch): 24 ; Nominal Depth (Inch): 2 ; MERV Rating: 6 ; Media Material: Synthetic
| Filter Type | Carbon |
| Nominal Height (Inch) | 24 |
| Nominal Width (Inch) | 24 |
| Nominal Depth (Inch) | 2 |
| MERV Rating | 6 |
| Media Material | Synthetic |
| Integrated Frame | Yes |
| Actual Height (Decimal Inch) | 23.500 |
| Actual Width (Decimal Inch) | 23.500 |
| Actual Depth (Inch) | 1.75 |
| Maximum Air Flow (FPM) | 500 |
| CFM | 2000 |
| Initial Resistance at FPM (Inches w.g.) | 0.18 (at 300 FPM); 0.37 (at 500 FPM) |
| Final Resistance at FPM (Inches w.g.) | 1 |
| Maximum Temperature (F) | 150.000 |
| Frame Material | Beverage Board |
