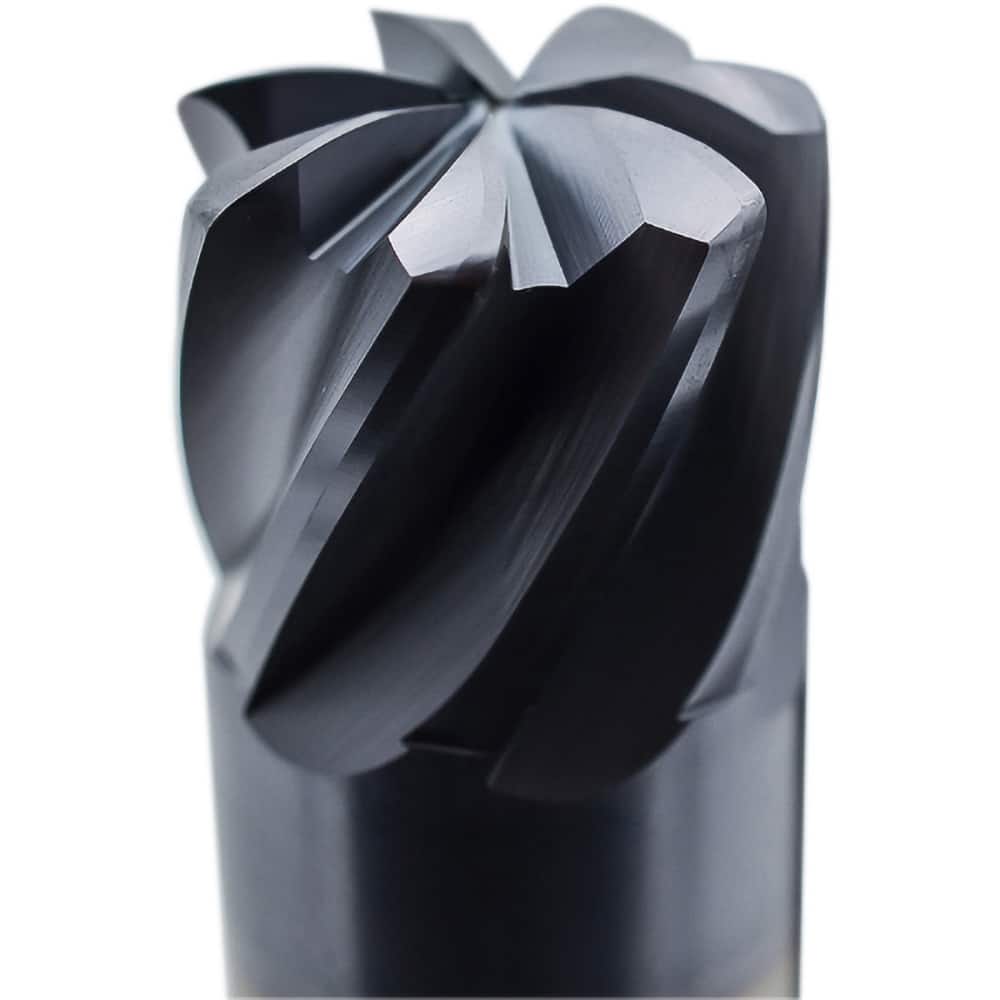

Corner Radius End Mill Head: 3/4″ Dia, 7 Flutes Solid Carbide, AlTiN Coated, Series 2052
Item #: 14238141
Brand: GWS
Model #: 205205
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (mm) | 19.05 |
| Mill Diameter (Inch) | 3/4 |
| Number of Flutes | 7 |
| Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.4380 |
| Length of Cut (Inch) | 0.4380 |
| Length of Cut (mm) | 19.05 |
| Shank Diameter (Inch) | 0.75 |
| Overall Length (Inch) | 6 |
| Overall Length (mm) | 152.40 |
| Flute Type | Straight |
| Cutting Direction | Right Hand |
| Helix Angle | 15.00 |
| Reach Length (Decimal Inch) | 2.5000 |
| Reach Length (Inch) | 2.5 |
| Single or Double End | Single |
| Length Type | Regular |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Shank Type | Straight |
| Series | 2052 |
| Chipbreaker | No |
