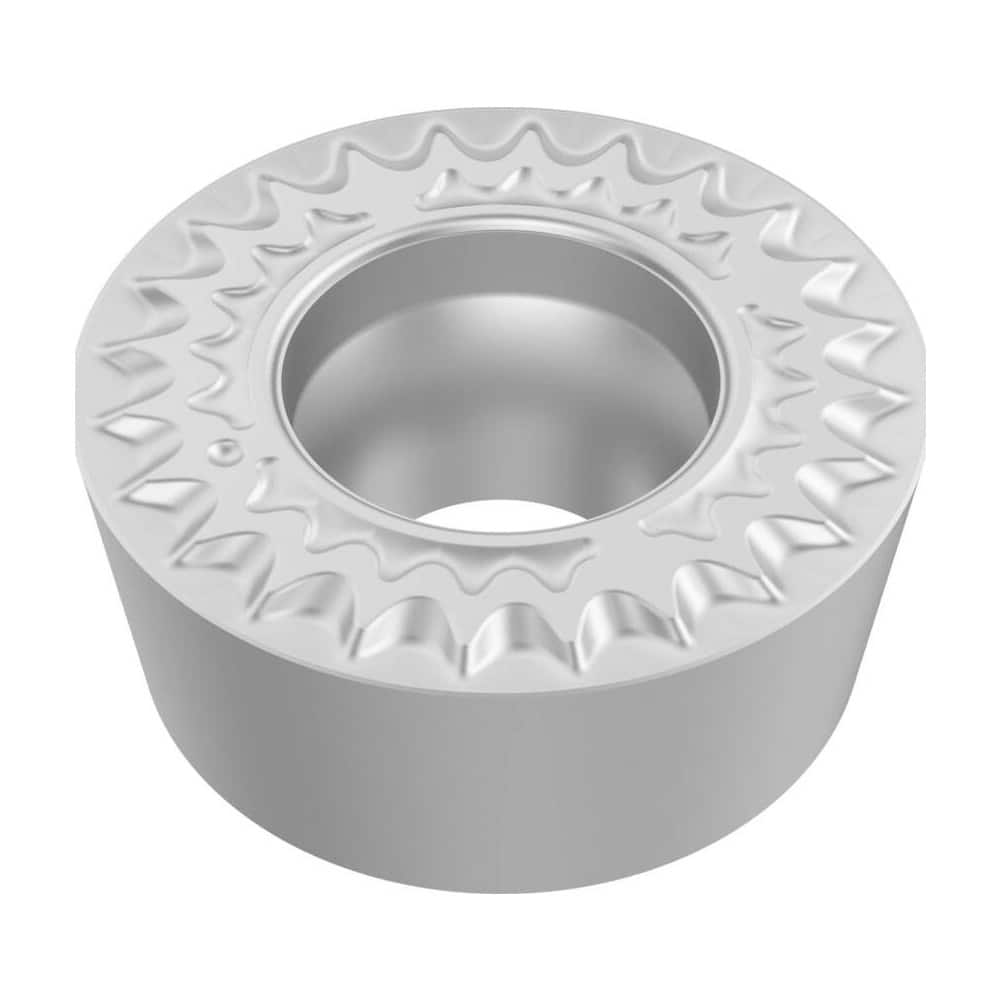

Milling Insert: RCGT1204M0-MF2, 883, Solid Carbide N/A Finish,
Item #: 14090138
Brand: Seco
Model #: 10083779
Product Specifications
| Insert Style | RCGT |
| Insert Size Code | 1204 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 883 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Neutral |
| Relief Angle | 7.00 |
| Series | RCGT12 |
| Coating Process | Uncoated |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.2362 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Universal |
| Secondary Workpiece Material | Universal |
| Ansi Code | RCGT1204M0-MF2 |
| Iso Code | RCGT1204M0-MF2 |
| Chip Breaker | MF2 |
| Coating/Finish | Uncoated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
