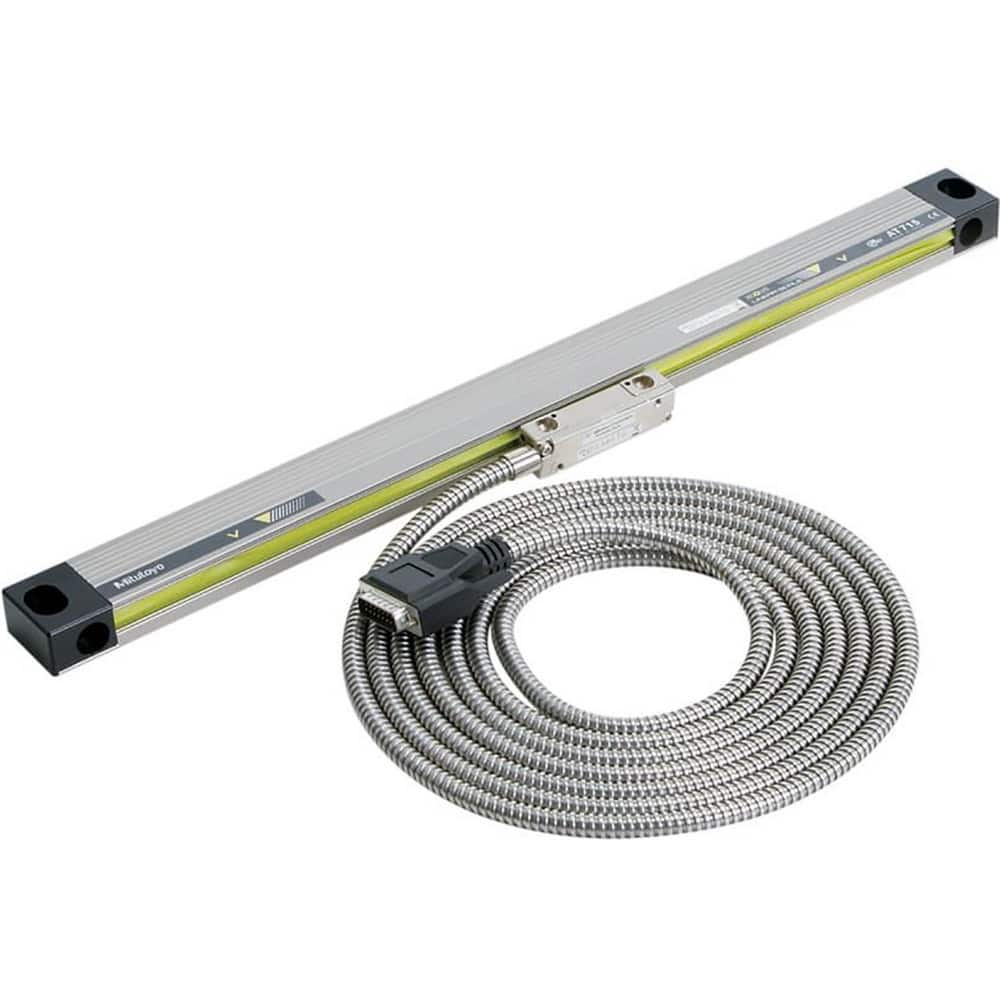

104″ Max Measuring Range, 1 µm Resolution, 111″ Scale Length, Electromagnetic DRO Linear Scale 10 µm Accuracy, IP67, 7,000' Cable Length, 0 to 45°C, Series AT715
Item #: 13682042
Brand: Mitutoyo
Model #: 539-864R
Product Specifications
| Scale Type | Electromagnetic |
| Maximum Measuring Range (Decimal Inch) | 103.9400 |
| Maximum Measurement | 104.00 |
| Maximum Measuring Range (mm) | 2640.00 |
| Resolution (Micron) | 1.00 |
| Resolution | 1.00 ?m |
| Scale Length (mm) | 2798.00 |
| Accuracy (micrometer) | 10.00 |
| Ip Rating | IP67 |
| Cable Length (Inch) | 275.5910 |
| Features | Absolute Scales; Electromagnetic Induction Principle |
| For Use With | Milling Machines; XY Tables; Jigs |
| Operating Temperature Range (C) | 0 to 45 |
| Storage Temperature Range (C) | -20 to 70 |
