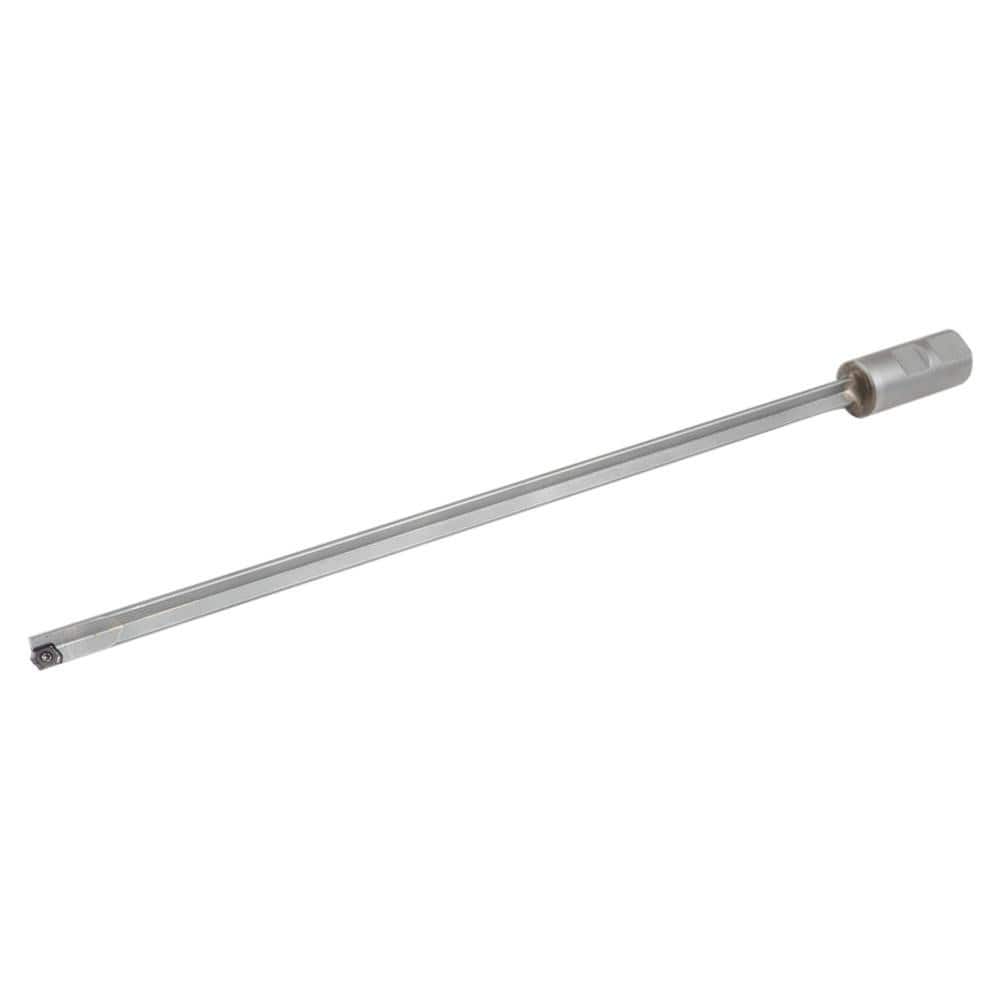

Indexable Insert Drills; Drill Style: GD-DH; Maximum Drill Diameter (mm): 13.50; Maximum Drill Diameter (Inch): 17/32; Maximum Drill Depth (mm): 351.80; Shank Type: Flatted; Shank Diameter (Inch): 63/64; Shank Diameter (mm): 25.00; Number of Drill Inserts
Item #: 13626767
Brand: Iscar
Model #: 4848055
Product Specifications
| Drill Style | GD-DH |
| Maximum Drill Diameter (mm) | 13.50 |
| Maximum Drill Diameter (Inch) | 17/32 |
| Maximum Drill Depth (mm) | 351.80 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (mm) | 25.00 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | LOGT |
| Compatible Insert Size Code | 060204 |
| Drill Depth by Diameter Ratio | 25xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 385.00 |
| Series | GD-DH |
| Flute Length (mm) | 351.80 |
| Body Length | 329.00 |
| Shank Length (mm) | 56.00 |
| Minimum Achievable Hole Tolerance | -0.0700 mm |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Coolant Through | Yes |
