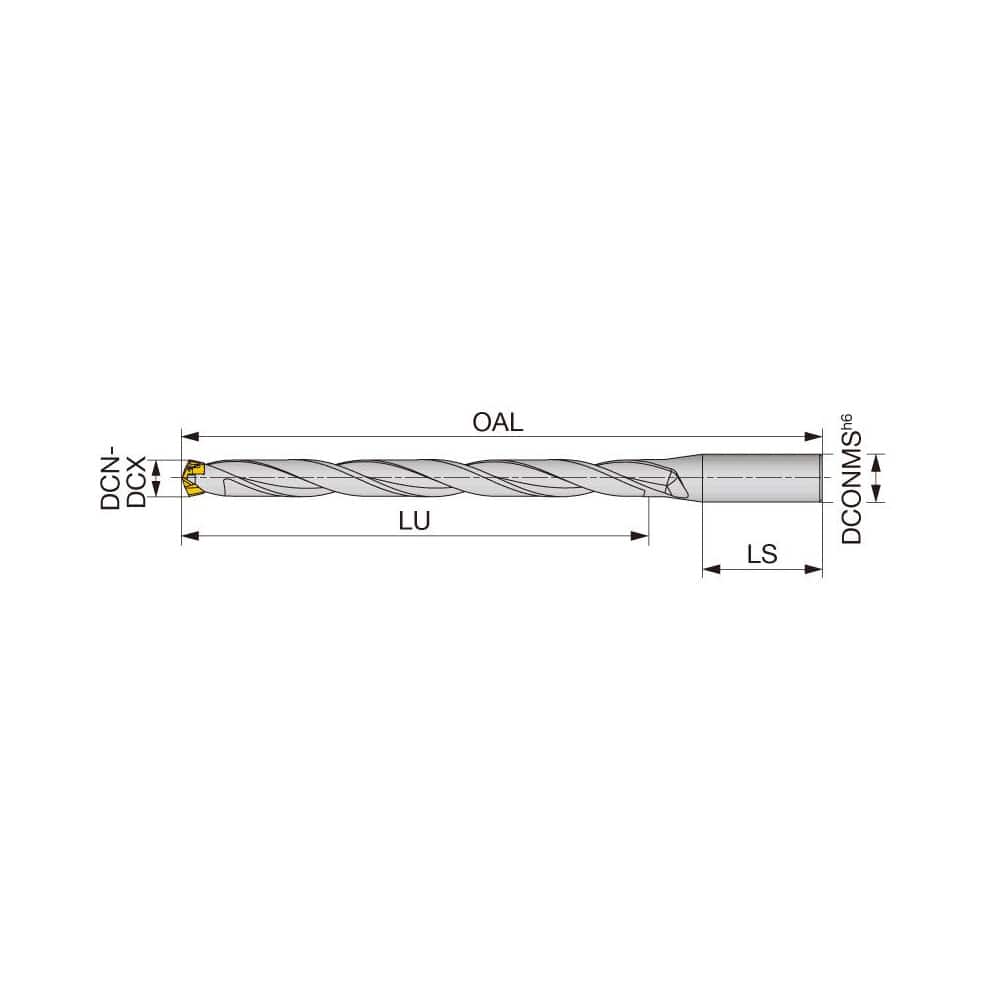

Replaceable Tip Drill: 19 to 19.9 mm Drill Dia, 232 mm Max Depth, 25 mm Straight-Cylindrical Shank Uses DMP Inserts, 313.8 mm OAL, Through Coolant
Item #: 13457395
Brand: Tungaloy
Model #: 6174362
Product Specifications
| Minimum Drill Diameter (mm) | 19.00 |
| Maximum Drill Diameter (mm) | 19.90 |
| Maximum Drill Depth (mm) | 232.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 200.00 |
| Compatible Insert Style | DMP |
| Compatible Insert Size Code | 190 |
| Overall Length (mm) | 313.80 |
| Series | TID |
| Toolholder Style | TID |
| Shank Length (mm) | 56.00 |
| Tool Performance | General Purpose |
| Coolant Through | Yes |
