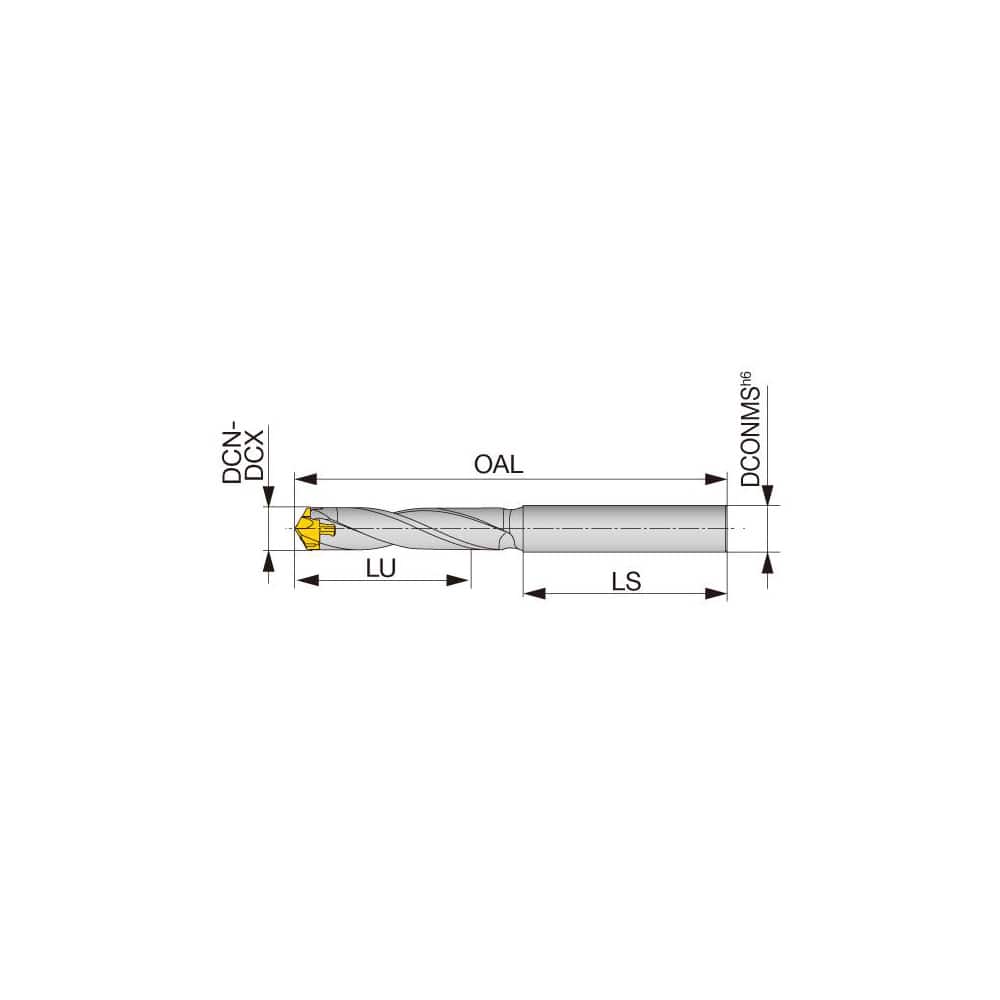

Replaceable Tip Drill: 9.5 to 9.9 mm Drill Dia, 33.3 mm Max Depth, 10 mm Straight-Cylindrical Shank Uses DMP Inserts, 93.17 mm OAL, Through Coolant
Item #: 13457247
Brand: Tungaloy
Model #: 6784585
Product Specifications
| Minimum Drill Diameter (mm) | 9.50 |
| Maximum Drill Diameter (mm) | 9.90 |
| Maximum Drill Depth (mm) | 33.30 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 10.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 0.00 to 40.00 |
| Compatible Insert Style | DMP |
| Compatible Insert Size Code | 095 |
| Overall Length (mm) | 93.17 |
| Series | TID |
| Toolholder Style | TID |
| Shank Length (mm) | 50.00 |
| Tool Performance | General Purpose |
| Coolant Through | Yes |
