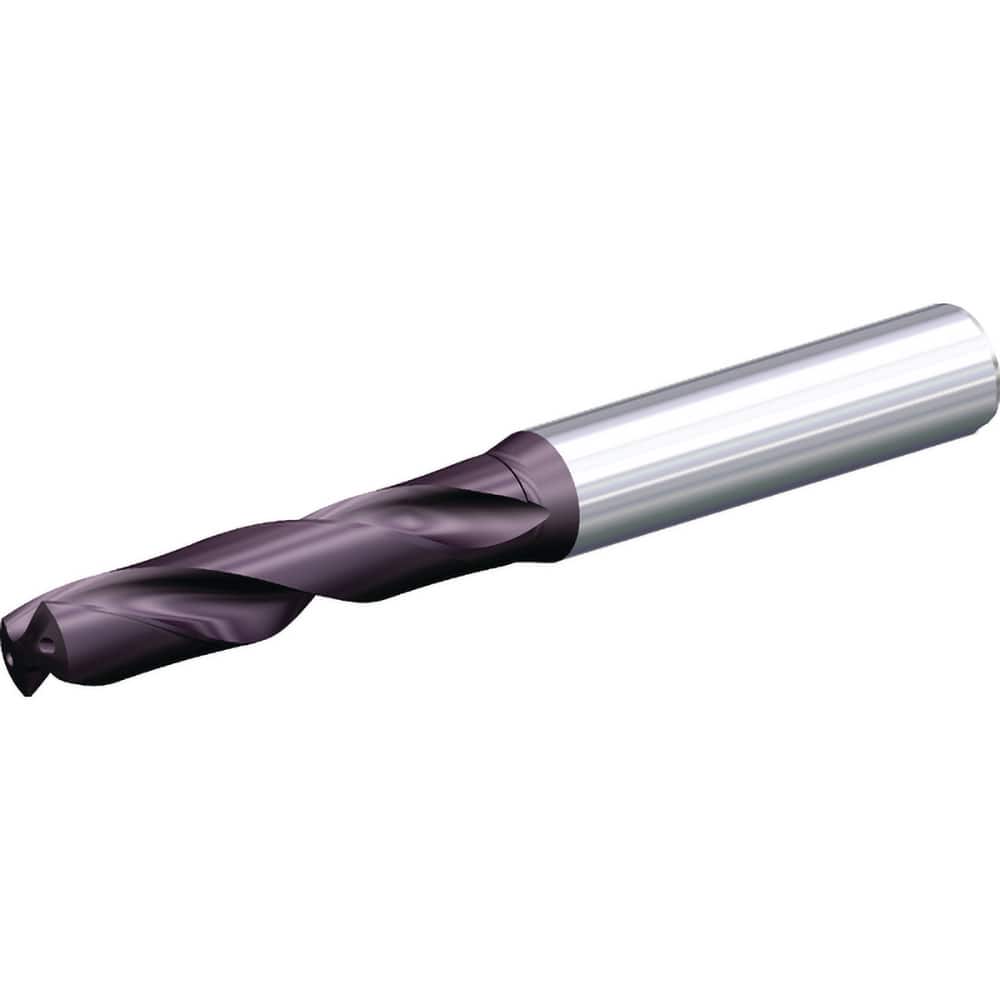

Taper Length Drill Bit: 0.5625″ Dia, 140 ° Coated, 5.748″ Flute Length, 5.748″ OAL, RH Cut, Helical Flute, Straight Shank, Series B212
Item #: 13211651
Brand: Kennametal
Model #: 6393653
Product Specifications
| Drill Bit Size (mm) | 14.28 |
| Tool Material | Solid Carbide |
| Coating/Finish | Coated |
| Flute Length (mm) | 146.00 |
| Shank Type | Straight |
| Flute Type | Helical |
| Coolant Through | Yes |
| Drill Point Angle (Degrees) | 140 |
| Overall Length (Inch) | 5.7480 |
| Overall Length (mm) | 146.00 |
| Shank Diameter (mm) | 16.00 |
| Drill Bit Size (Decimal Inch) | 0.5625 |
| Flute Length (Decimal Inch) | 5.7480 |
| Flute Length x Diamter Ratio | 8xD |
| Cutting Direction | Right Hand |
| Series | B212 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (Decimal Inch) | 5.0394 |
| Maximum Drilling Depth (mm) | 128.00 |
| Shank Length (Decimal Inch) | 1.8898 |
| Shank Length (mm) | 48.00 |
| Drill Point Length (Decimal Inch) | 0.0831 |
