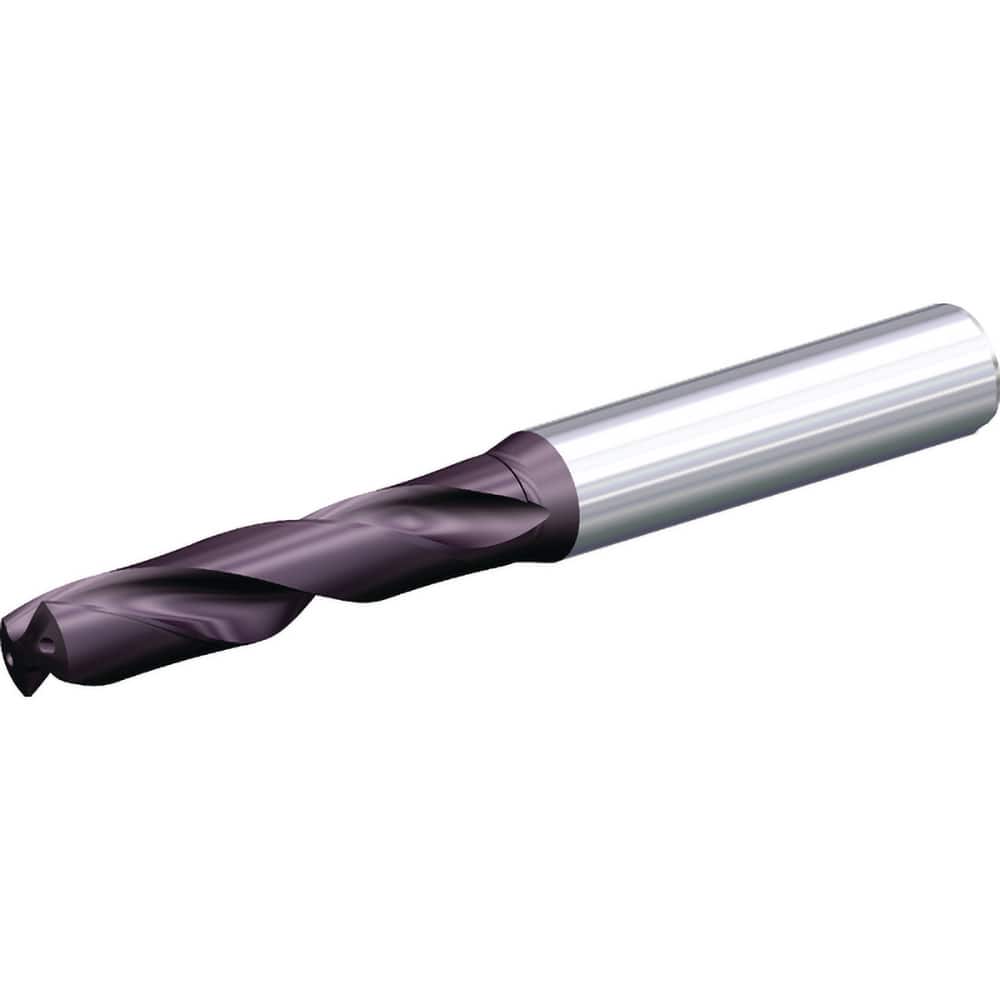

Taper Length Drill Bit: 0.4844″ Dia, 140 ° Coated, 5.0394″ Flute Length, 5.0394″ OAL, RH Cut, Helical Flute, Straight Shank, Series B212
Item #: 13211636
Brand: Kennametal
Model #: 6393651
Product Specifications
| Drill Bit Size (mm) | 12.30 |
| Tool Material | Solid Carbide |
| Coating/Finish | Coated |
| Flute Length (mm) | 128.00 |
| Shank Type | Straight |
| Flute Type | Helical |
| Coolant Through | Yes |
| Drill Point Angle (Degrees) | 140 |
| Overall Length (Inch) | 5.0394 |
| Overall Length (mm) | 128.00 |
| Shank Diameter (mm) | 14.00 |
| Drill Bit Size (Decimal Inch) | 0.4844 |
| Flute Length (Decimal Inch) | 5.0394 |
| Flute Length x Diamter Ratio | 9xD |
| Cutting Direction | Right Hand |
| Series | B212 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Flute Length X Diameter Ratio | 9xD |
| Maximum Drilling Depth (Decimal Inch) | 4.4094 |
| Maximum Drilling Depth (mm) | 112.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45.00 |
| Drill Point Length (Decimal Inch) | 0.0717 |
