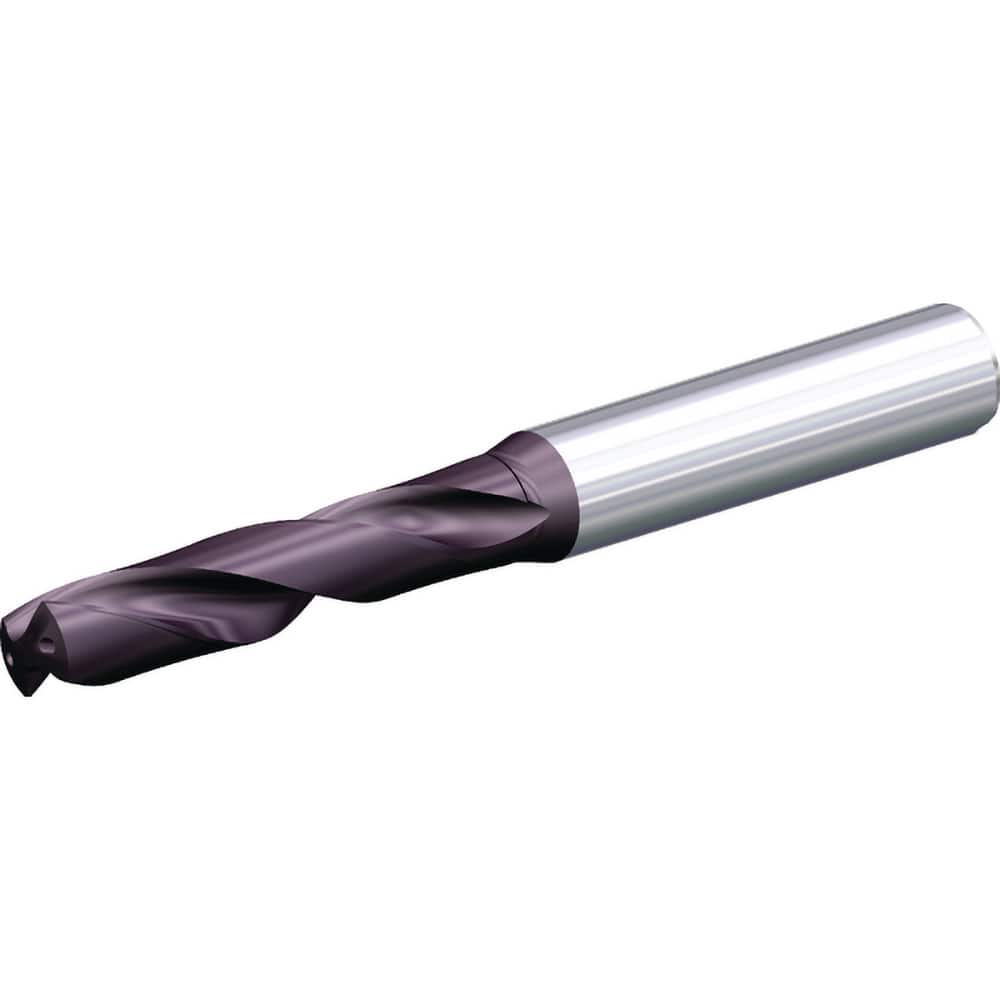

Taper Length Drill Bit: 0.4063″ Dia, 140 ° Coated, 4.3307″ Flute Length, 4.3307″ OAL, RH Cut, Helical Flute, Straight Shank, Series B212
Item #: 13211602
Brand: Kennametal
Model #: 6393646
Product Specifications
| Drill Bit Size (mm) | 10.32 |
| Tool Material | Solid Carbide |
| Coating/Finish | Coated |
| Flute Length (mm) | 110.00 |
| Shank Type | Straight |
| Flute Type | Helical |
| Coolant Through | Yes |
| Drill Point Angle (Degrees) | 140 |
| Overall Length (Inch) | 4.3307 |
| Overall Length (mm) | 110.00 |
| Shank Diameter (mm) | 12.00 |
| Drill Bit Size (Decimal Inch) | 0.4063 |
| Flute Length (Decimal Inch) | 4.3307 |
| Flute Length x Diamter Ratio | 9xD |
| Cutting Direction | Right Hand |
| Series | B212 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Flute Length X Diameter Ratio | 9xD |
| Maximum Drilling Depth (Decimal Inch) | 3.7795 |
| Maximum Drilling Depth (mm) | 96.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45.00 |
| Drill Point Length (Decimal Inch) | 0.0602 |
