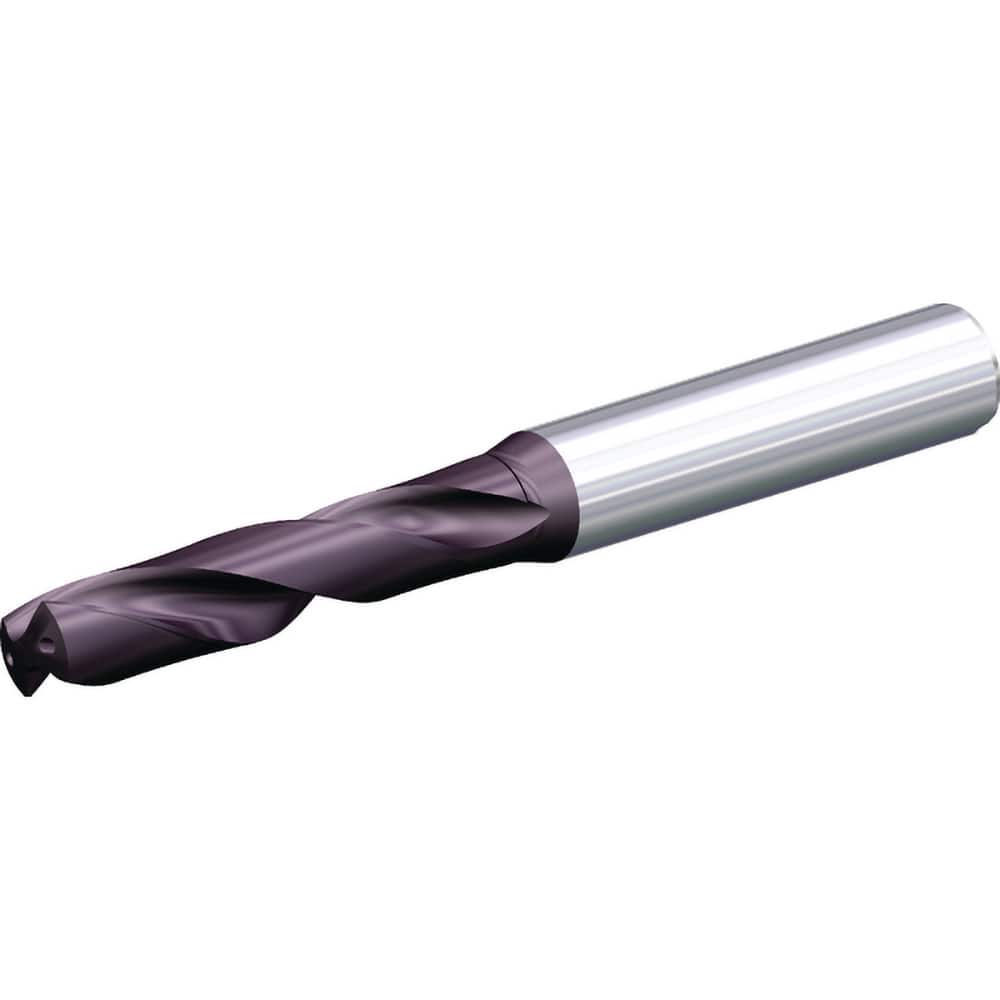

Jobber Length Drill Bit: 0.6563″ Dia, 140 °, Solid Carbide AlTiN Finish, 5.6299″ OAL, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank, Series B211
Item #: 13211222
Brand: Kennametal
Model #: 6393622
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.6563 |
| Drill Bit Size (mm) | 16.67 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Overall Length (mm) | 143.00 |
| Overall Length (Decimal Inch) | 5.6299 |
| Flute Length (mm) | 93.00 |
| Flute Length (Decimal Inch) | 3.6614 |
| Series | B211 |
| Flute Length x Diamter Ratio | 4xD |
| Flute By Diameter Ratio | 4xD |
| Shank Diameter (mm) | 18.00 |
| Maximum Drilling Depth (Decimal Inch) | 2.7953 |
| Maximum Drilling Depth (mm) | 71.00 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
| Drill Point Length (mm) | 2.47 |
| Drill Point Length (Decimal Inch) | 0.0972 |
