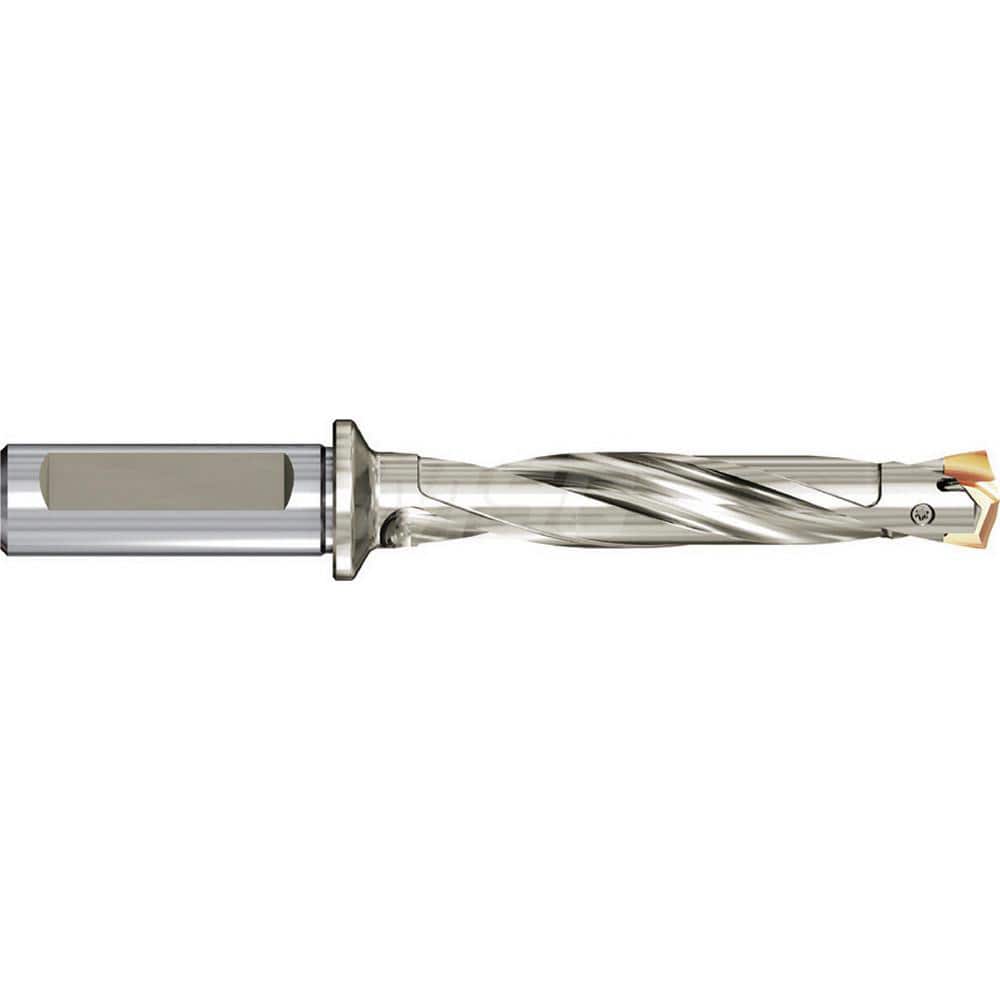

Replaceable Tip Drill: 1.1023 to 1.1378'' Drill Dia, 5.7031″ Max Depth Seat Size 0.3300, Through Coolant
Item #: 12497004
Brand: YG-1
Model #: ZD28005125
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 1.1023 |
| Maximum Drill Diameter (Decimal Inch) | 1.1378 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 5.7031 |
| Insert Style | S28 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Seat Size | 0.3300 |
| Maximum Drill Depth Range (Decimal Inch) | 4.5000 to 6.0000 |
| Series | ZD28005 |
| Toolholder Style | i-one |
| Coolant Through | Yes |
