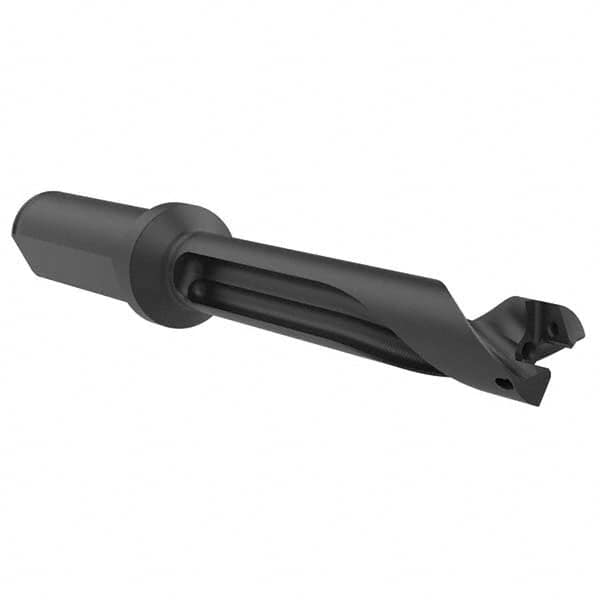

Indexable Spade Drill: 0.6299 to 0.6692″ Dia, 3-1/64″ Max Depth, Straight Flute 3/4″ Shank Dia, Cylindrical Shank, 3-13/64″ Body Length, 5-15/64″ OAL, Through Coolant
Item #: 12329231
Brand: Allied Machine and Engineering
Model #: ST03160-075F
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (Decimal Inch) | 0.6692 |
| Maximum Drill Depth (Inch) | 3-1/64 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 3/4 |
| Drill Depth by Diameter Ratio | 3xD |
| Tool Material | Steel |
| Overall Length (Inch) | 5-15/64 |
| Flute Type | Straight |
| Body Length | 3-13/64 |
| Shank Length (Inch) | 2-1/32 |
| Coolant Hole Thread Size | 1/8 |
| Coolant Hole Thread Type | NPT |
| Coolant Through | Yes |
