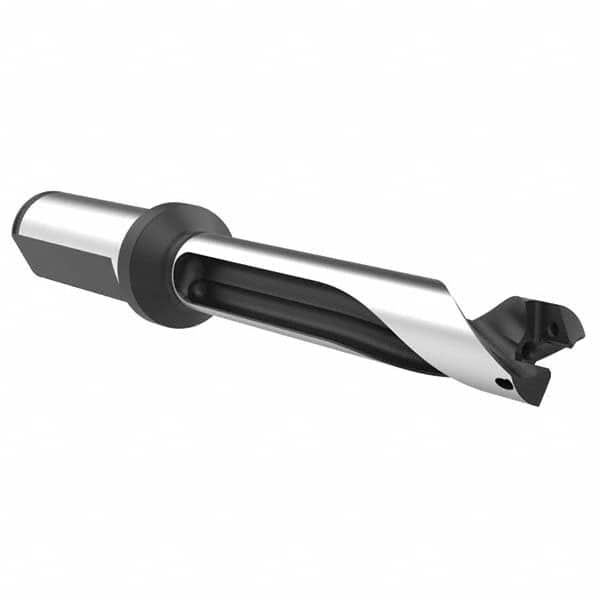

Indexable Spade Drill: 16 to 17 mm Dia, 51 mm Max Depth, Straight Flute 20 mm Shank Dia, Cylindrical Shank, 81.3 mm Body Length, 131.3 mm OAL, Through Coolant
Item #: 12329199
Brand: Allied Machine and Engineering
Model #: ST03160-20FM
Product Specifications
| Minimum Drill Diameter (mm) | 16.00 |
| Maximum Drill Diameter (mm) | 17.00 |
| Maximum Drill Depth (mm) | 51.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Drill Depth by Diameter Ratio | 3xD |
| Tool Material | Steel |
| Overall Length (mm) | 131.30 |
| Flute Type | Straight |
| Body Length | 81.30 |
| Shank Length (mm) | 50.00 |
| Coolant Hole Thread Size | 1/8 |
| Coolant Hole Thread Type | NPT |
| Coolant Through | Yes |
