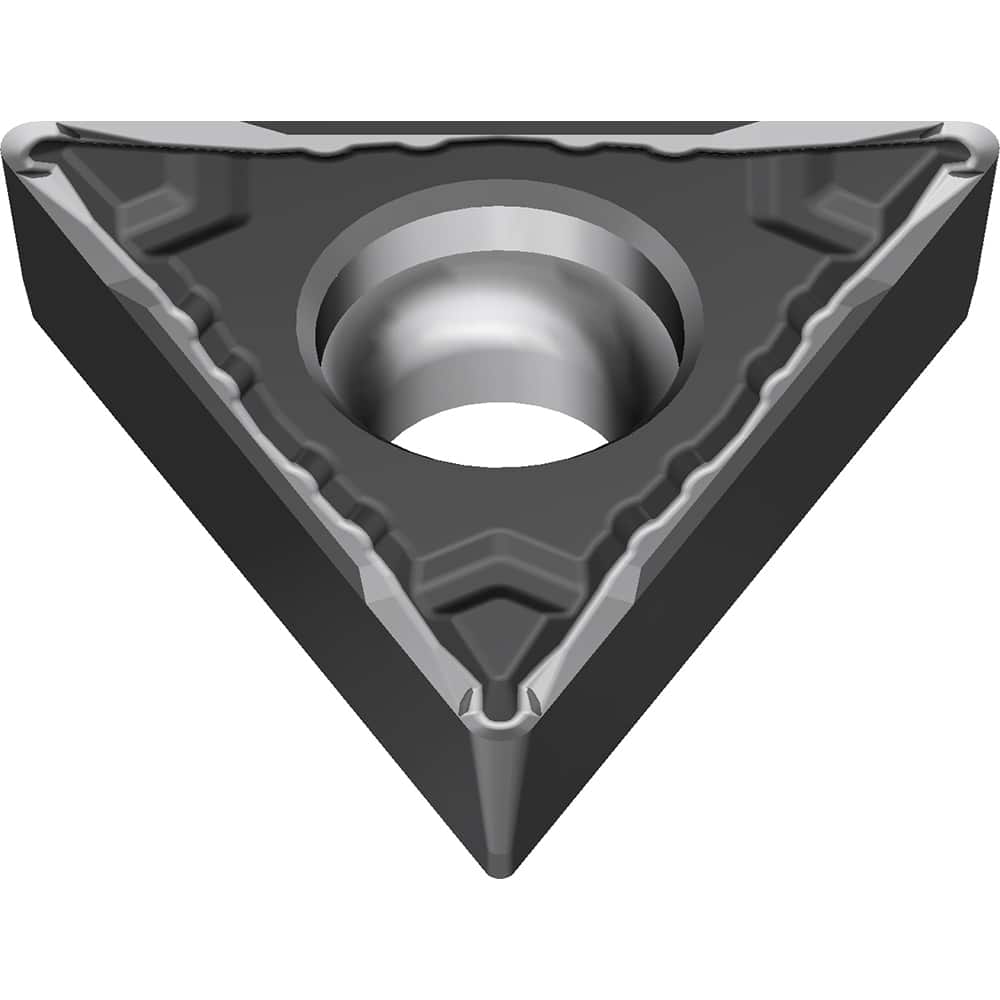

TPMT181505ELU AC8025P Carbide Turning Insert Absotech Finish, 9.6mm Long, 5.56mm Inscribed Circle, 0.2mm Corner Radius, 2.38mm Thick, 60° Included Angle, Series AC8000P
Item #: 12068839
Brand: Sumitomo
Model #: 19P7BVW
Product Specifications
| Insert Style | TPMT |
| Insert Shape Code | T |
| Insert Size Code | 1.81.50.5 |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC8025P |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Inscribed Circle (mm) | 5.56 |
| Insert Holding Method | Screw-On |
| Insert Thickness | 2.38 |
| Corner Radius (mm) | 0.20 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | AC8000P |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (mm) | 9.60 |
| Primary Workpiece Material | Steel |
| Iso Code | TPMT090202N-LU |
| Manufacturers Catalog Number | TPMT1.81.50.5ELU-AC8025P |
| Chip Breaker | ELU |
| Coating/Finish | Absotech |
