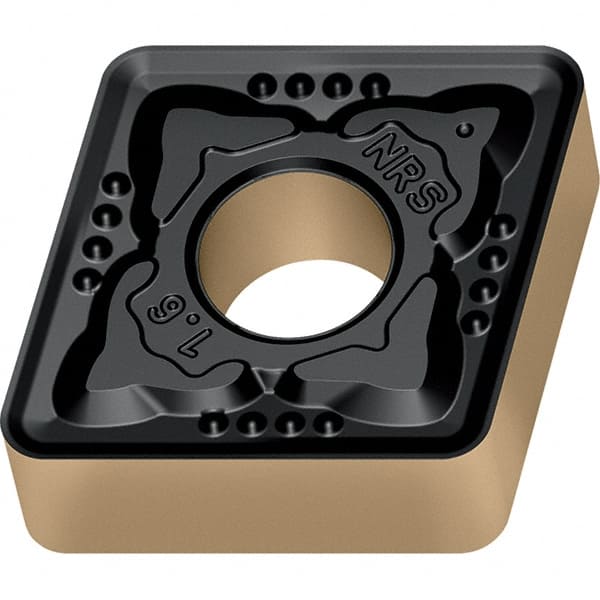

Turning Insert [DELETE]
Item #: 11735099
Brand: Walter
Model #: 7469071
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 120412 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM01 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Included Angle | 80.0 |
| Series | CNMG-NRS |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Hard Material; Non-Ferrous Metal; Steel |
| Secondary Workpiece Material Code | P; H; N |
| Ansi Code | CNMG433NRSWSM01 |
| Iso Code | CNMG120412-NRS WSM01 |
| Standards | ISO; ANSI |
| Chip Breaker | NRS |
