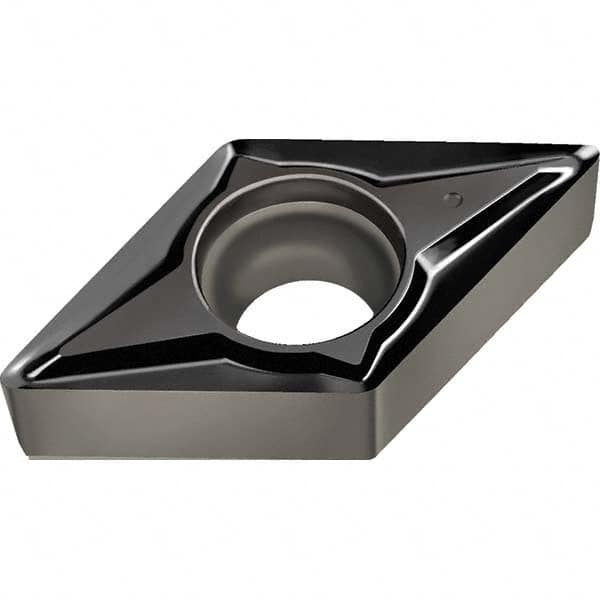

Turning Insert [DELETE]
Item #: 11734647
Brand: Walter
Model #: 7499357
Product Specifications
| Insert Style | DCGT |
| Insert Shape Code | D |
| Insert Size Code | 070 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSM01 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Series | DCGT |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Superalloy; Titanium |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Hard Material; Non-Ferrous Metal; Steel |
| Secondary Workpiece Material Code | P; H; N |
| Ansi Code | DCGT2(1.5)1FM2WSM01 |
| Iso Code | DCGT070204-FM2 WSM01 |
| Standards | ISO; ANSI |
| Chip Breaker | FM |
| Coating/Finish | Uncoated |
