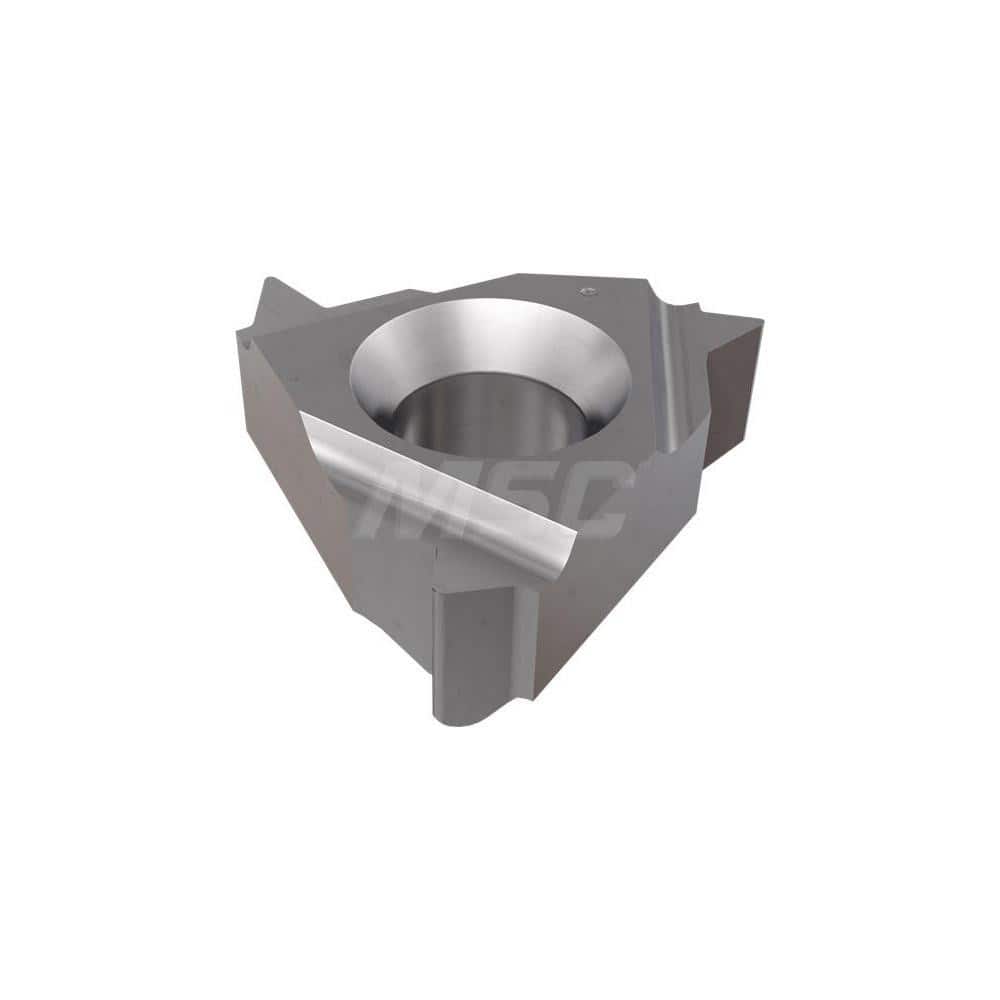

Laydown Threading Inserts; Insert Style: 11IR; Insert Size Code: 11; Insert Material: Solid Carbide; Manufacturer Grade: IC250; Threads Per Inch: 48; Thread Type: Internal; Thread Standard: UN; Insert Hand: Right Hand; Included Angle: 60; Chipbreaker: Z;
Item #: 11535549
Brand: Iscar
Model #: 3409679
Product Specifications
| Insert Style | 11IR |
| Insert Size Code | 11 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC250 |
| Thread Type | Internal |
| Thread Standard | UN |
| Insert Hand | Right Hand |
| Included Angle | 60 |
| Chipbreaker | Z |
| Series | IR |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0016 |
| Teeth Per Inch | 48.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1300 |
| Coating/Finish | Coated |
