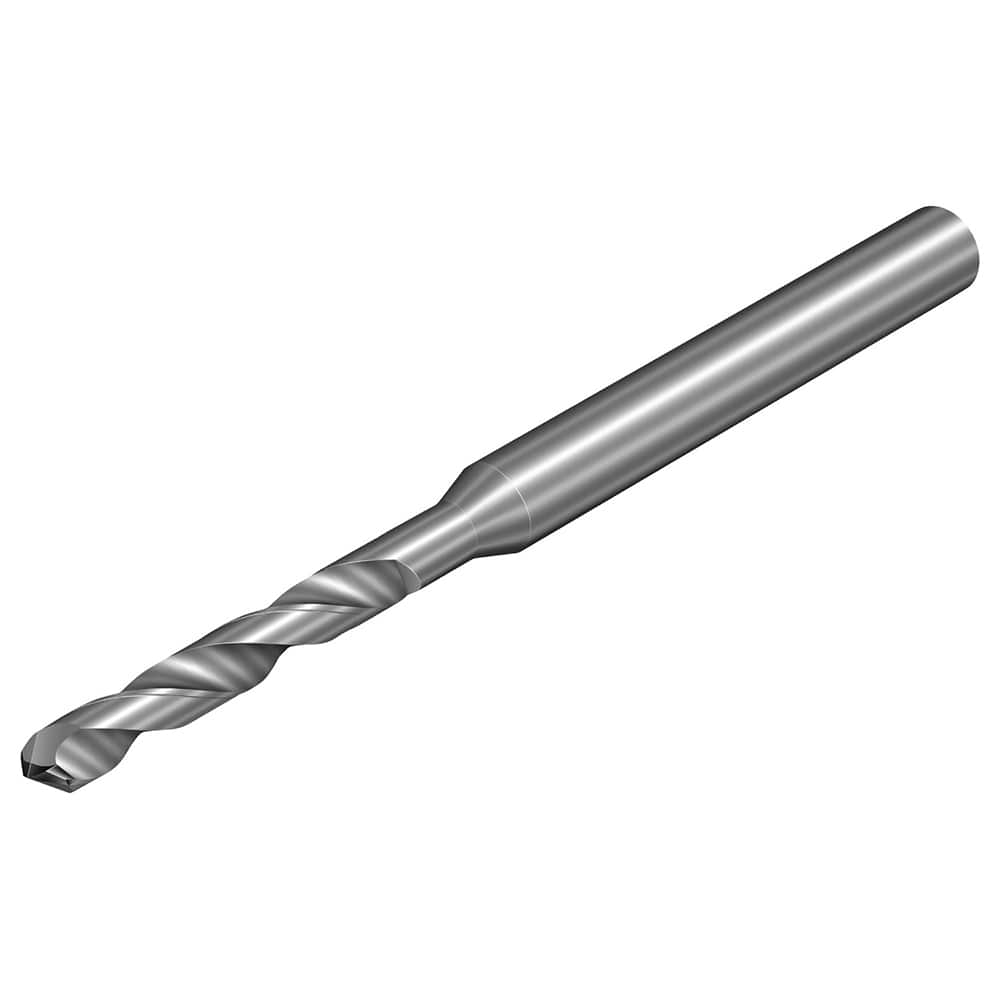

Micro Drill Bit: 0.0156″ Dia, 118 °, Solid Carbide Bright/Uncoated, 1.4764″ OAL, RH Cut, Spiral Flute, Straight-Cylindrical Shank, Series CoroDrill 862
Item #: 11474673
Brand: Sandvik Coromant
Model #: 8140545
Product Specifications
| Drill Bit Size (mm) | 0.01 |
| Drill Bit Size (Decimal Inch) | 0.0156 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 0.21 |
| Coating/Finish | Bright/Uncoated |
| Coolant Through | No |
| Drill Point Angle | 118 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (Decimal Inch) | 0.1874 |
| Series | CoroDrill 862 |
| Overall Length (Decimal Inch) | 1.4764 |
| Overall Length (mm) | 1.47 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Superalloys & Titanium |
| Secondary Workpiece Material Code | S |
| Shank Diameter (Decimal Inch) | 0.1181 |
