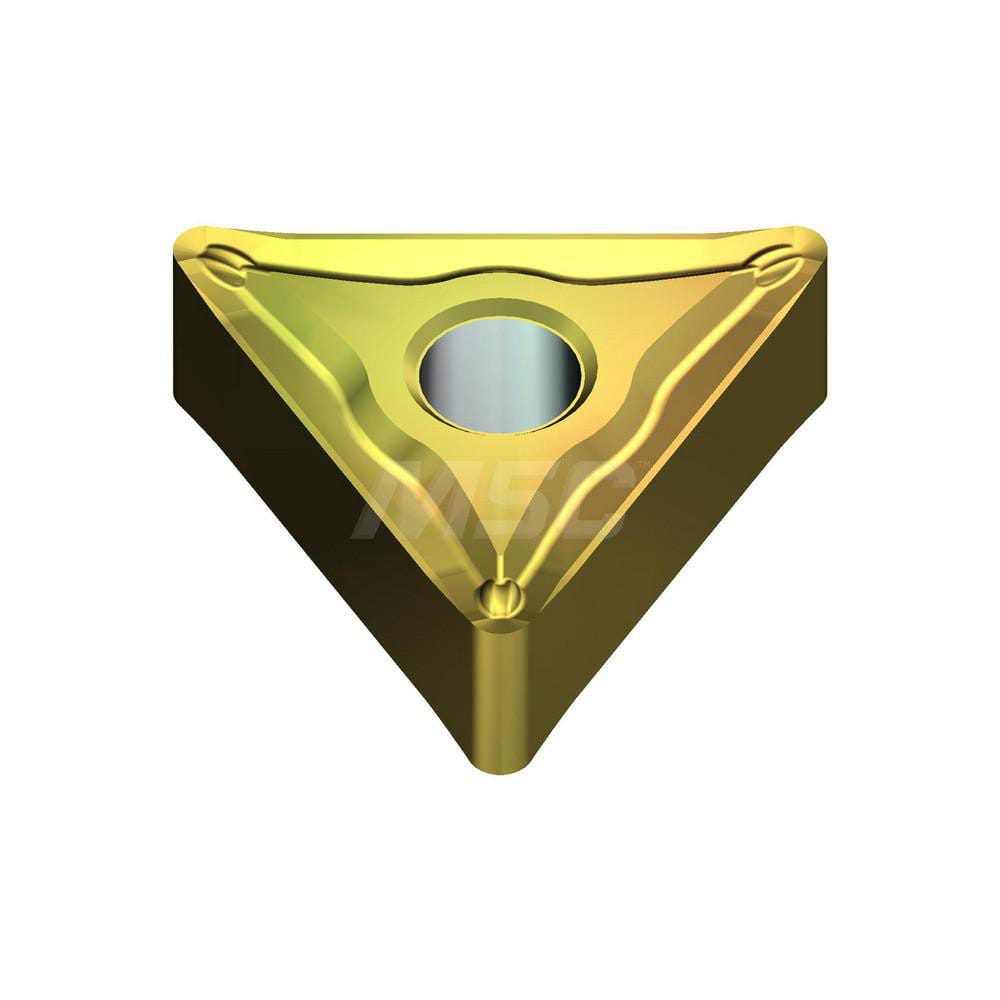

Turning Insert: TNMG433ESU T2500Z, Cermet AlN Finish, Neutral, 0.8661″ Long, 1/2″ Inscribed Circle, 0.0472″ Corner Radius, 60.0 ° N/A Triangle, Series T2500Z
Item #: 11359213
Brand: Sumitomo
Model #: 19U5WBP
Product Specifications
| Insert Style | TNMG |
| Insert Size Code | 433 |
| Insert Shape | Triangle |
| Insert Material | Cermet |
| Manufacturer Grade | T2500Z |
| Hole Diameter (Decimal Inch) | 0.2032 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | T2500Z |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.8661 |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material Code | P; K |
| Ansi Code | TNMG433ESUT2500Z |
| Chip Breaker | ESU |
| Coating/Finish | AlN |
