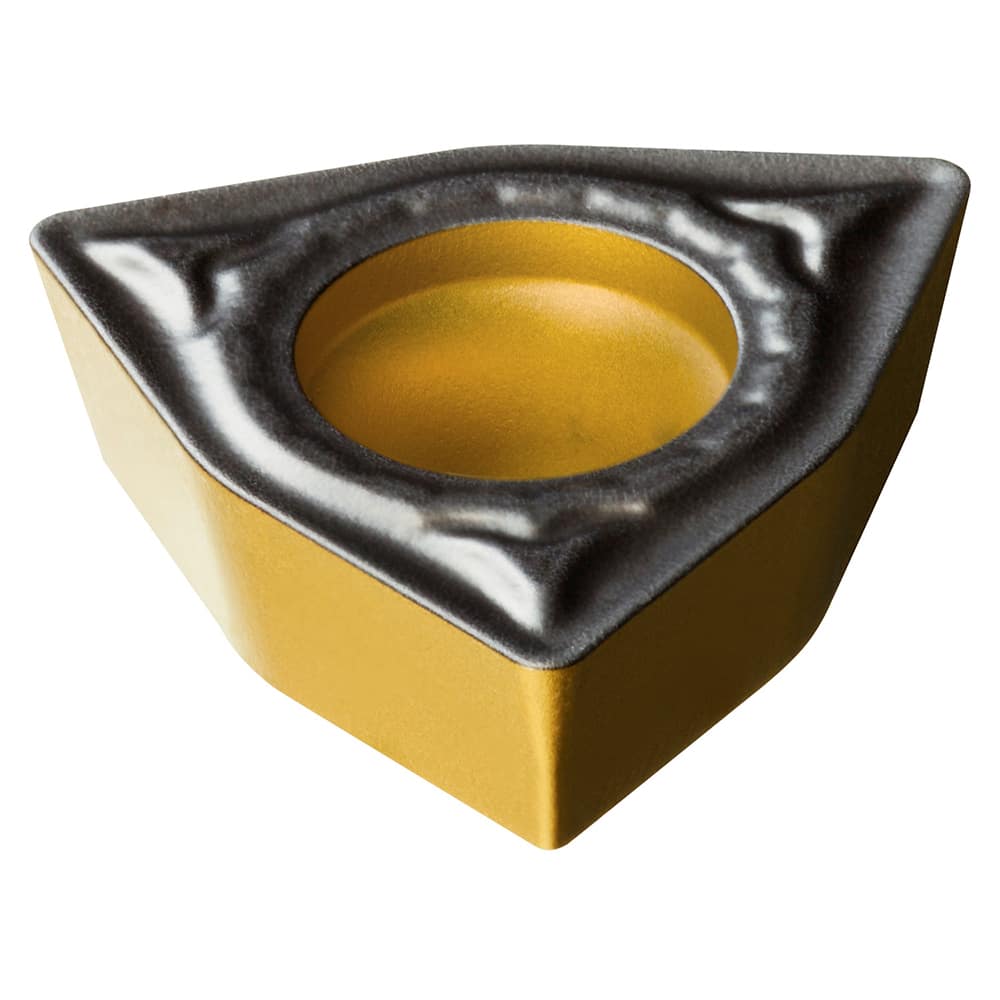

Turning Insert: WPMT 04 02 08-PM 4425, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.0313″ Corner Radius, N/A Series WPMT-PM
Item #: 10799146
Brand: Sandvik Coromant
Model #: 8019513
Product Specifications
| Insert Style | WPMT |
| Insert Shape Code | W |
| Insert Size Code | 0402 |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Relief Angle | 11 |
| Series | WPMT-PM |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Secondary Workpiece Material | K |
| Iso Code | WPMT 04 02 08-PM 4425 |
| Manufacturers Catalog Number | WPMT 04 02 08-PM 4425 |
| Cutting Direction | Neutral |
| Chip Breaker | PM |
| Coating/Finish | TiCN; TiN; Al2O3 |
