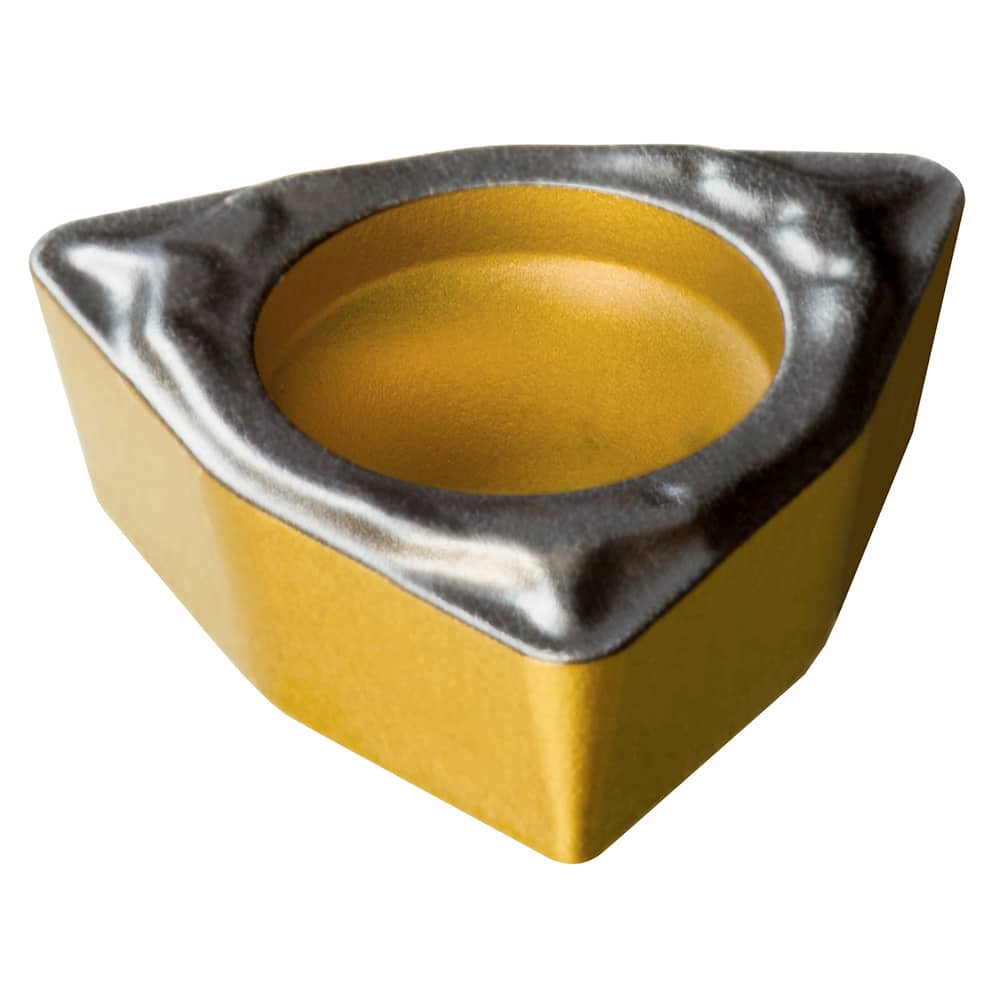

Turning Insert: WPMT 04 02 04-PF 4415, TiCN, Al2O3 & TiN Finish, Neutral, 0.0156″ Corner Radius, N/A Series WPMT-PF
Item #: 10797652
Brand: Sandvik Coromant
Model #: 8021009
Product Specifications
| Insert Style | WPMT |
| Insert Shape Code | W |
| Insert Size Code | 0402 |
| Clearance Code | P |
| Tolerance Code | M |
| Manufacturer Grade | 4415 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Relief Angle | 11 |
| Series | WPMT-PF |
| Coating Process | CVD |
| Secondary Workpiece Material | K |
| Iso Code | WPMT 04 02 04-PF 4415 |
| Manufacturers Catalog Number | WPMT 04 02 04-PF 4415 |
| Cutting Direction | Neutral |
| Chip Breaker | PR |
| Coating/Finish | TiCN; TiN; Al2O3 |
