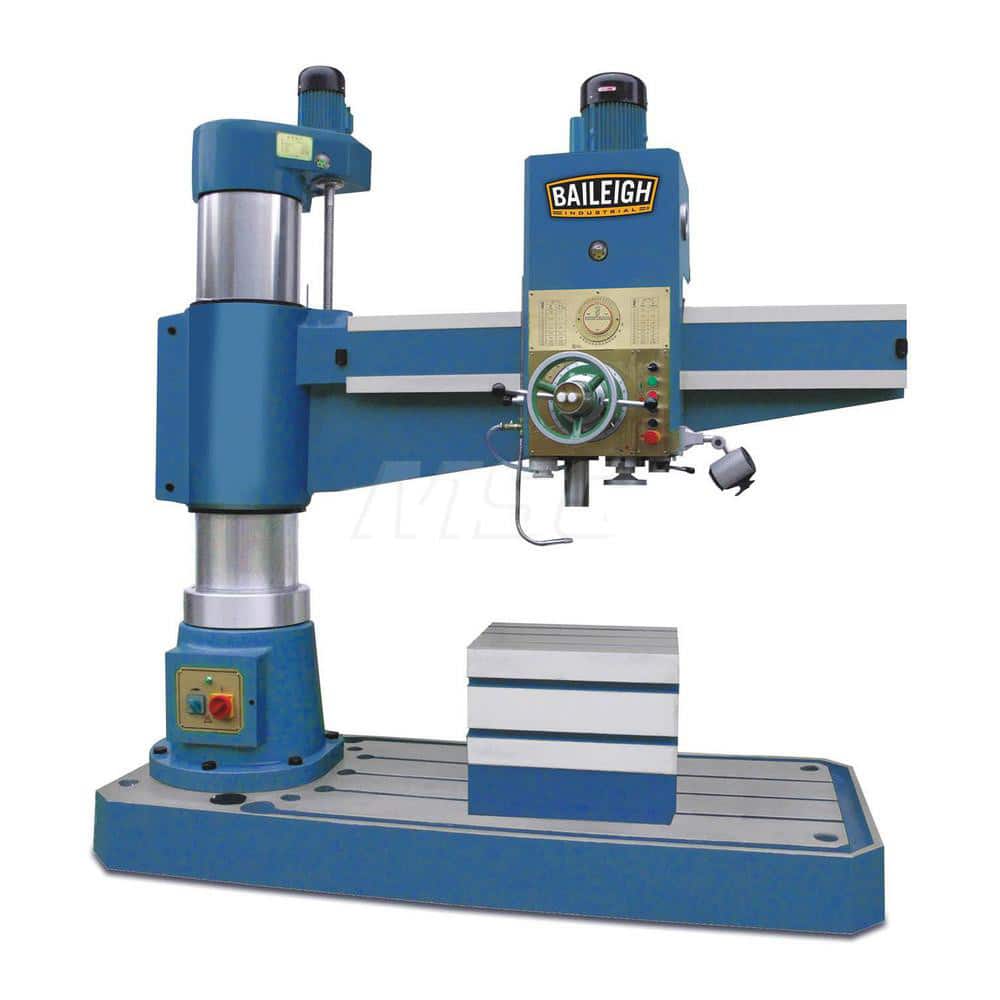

Floor Drill Press: 5.25 hp, 220V, 3 Phase 16 Speed
Item #: 10753929
Brand: Baileigh
Model #: 1008486
Product Specifications
| Stand Type | Floor |
| Machine Type | Drill Press |
| Spindle Speed Control | Geared Head |
| Phase | 3 |
| Spindle Taper Size | 5MT |
| Maximum Spindle Speed (RPM) | 2000 |
| Number of Spindle Speeds | 16 |
| Spindle to Table Distance (Inch) | 48 |
| Spindle to Table Distance (Decimal Inch) | 48.0000 |
| Spindle Travel Length (Decimal Inch) | 12.4000 |
| Column Diameter (Decimal Inch) | 13.7000 |
| Drilling Capacity in Steel (Inch) | 2 |
| Drilling Capacity in Cast Iron (Inch) | 2 |
| Table Length (Decimal Inch) | 24.8000 |
| Voltage | 220 |
| Horsepower | 5.25 |
| Base Length (Decimal Inch) | 94.4000 |
| Base Length | 94.4000 |
| Overall Height (Decimal Inch) | 112.00 |
| Overall Height (Inch) | 112 |
| Overall Length (Decimal Inch) | 98.0000 |
| Overall Depth (Inch) | 96 |
| Overall Depth (Inch) | 96.0000 |
