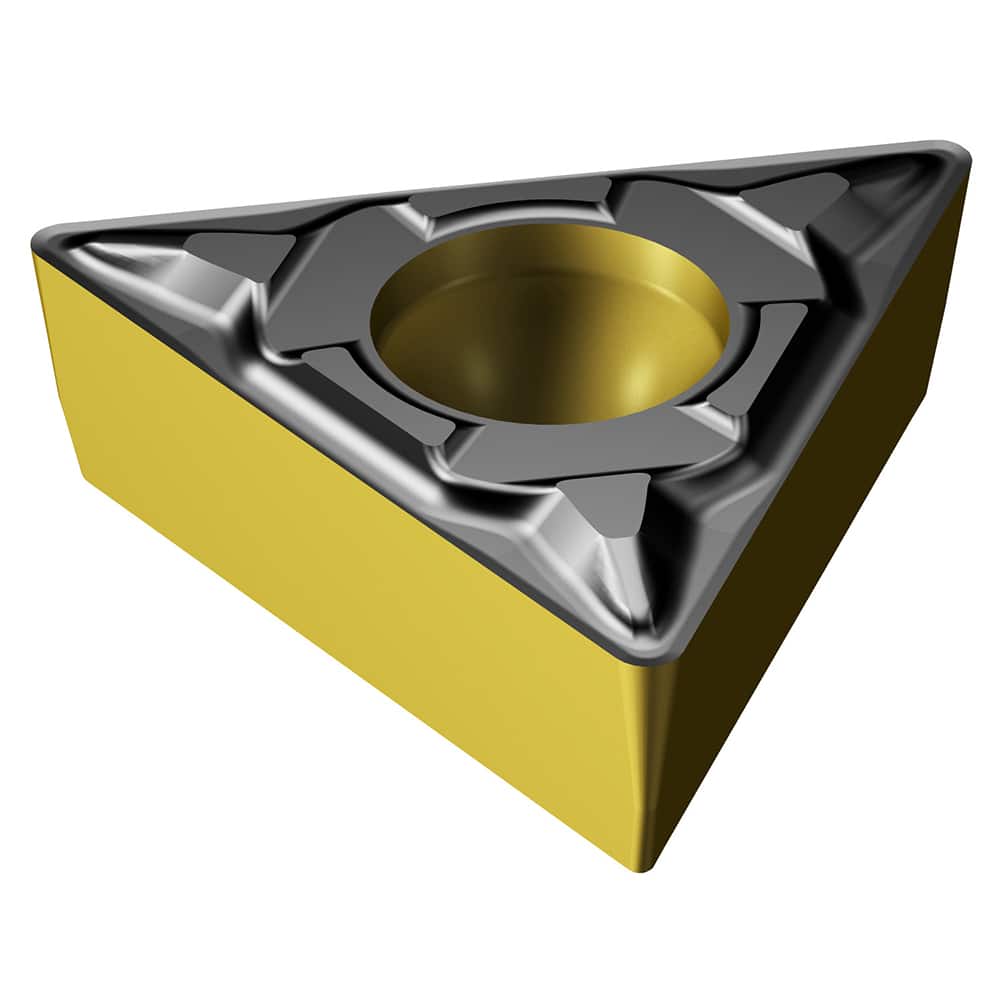

TCMT222-PF 4415 Carbide Turning Insert Al2O3/TiN/TiCN Finish, Neutral, 1/4″ Inscribed Circle, 0.0313″ Corner Radius, 1/8″ Thick, 60° Triangle
Item #: 10208809
Brand: Sandvik Coromant
Model #: 7860491
Product Specifications
| Insert Style | TCMT |
| Insert Shape Code | T |
| Insert Size Code | 110308 |
| Insert Shape | Triangle |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4415 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Primary Workpiece Material | P; K |
| Iso Code | TCMT 11 03 08-PF 4415 |
| Manufacturers Catalog Number | TCMT222PF |
| Cutting Direction | Neutral |
| Chip Breaker | T |
| Industry Standard Number | TCMT110308PF4415 |
| Coating/Finish | TiCN; TiN; Al2O3 |
