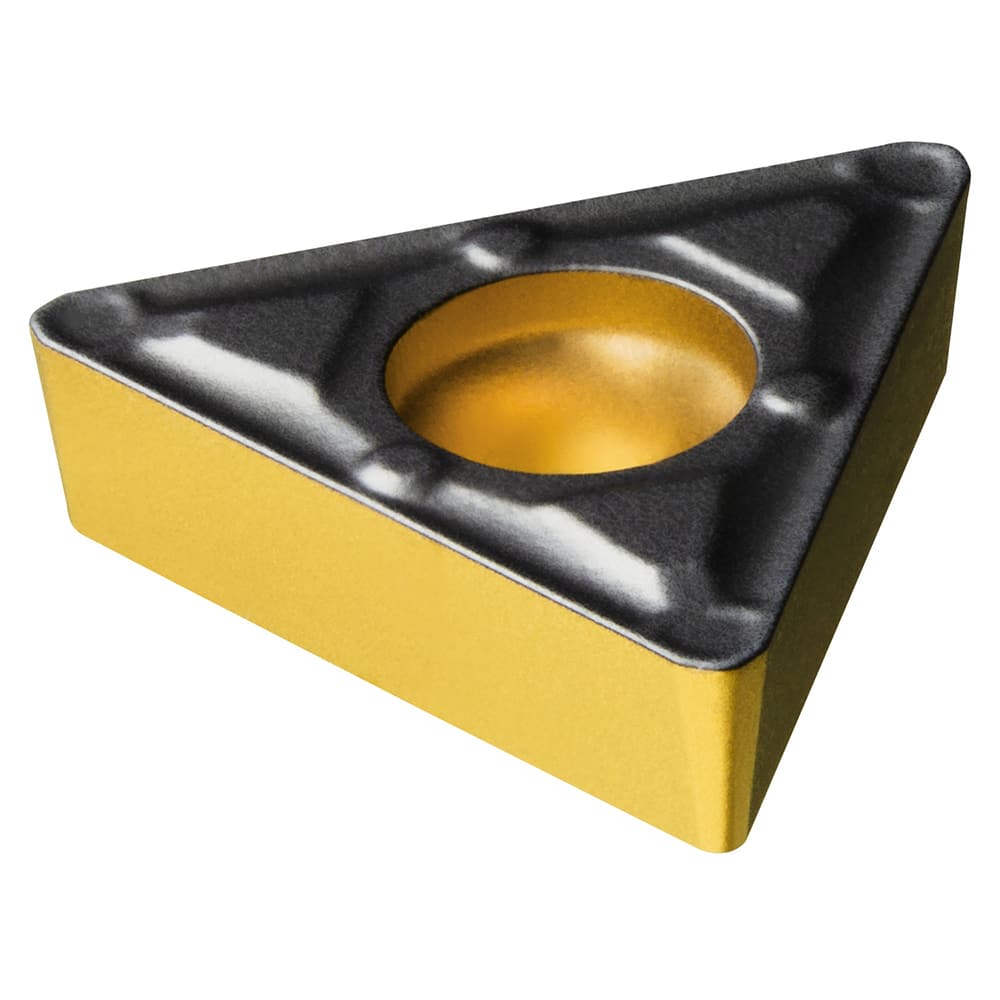

TCMX1.81.51-WF 4415 Carbide Turning Insert Al2O3/TiN/TiCN Finish, Neutral, 7/32″ Inscribed Circle, 0.0156″ Corner Radius, 3/32″ Thick, 60° Diamond
Item #: 10205672
Brand: Sandvik Coromant
Model #: 7860506
Product Specifications
| Insert Style | TCMX |
| Insert Shape Code | T |
| Insert Size Code | 090204 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4415 |
| Inscribed Circle (Inch) | 7/32 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 60.0 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Primary Workpiece Material | P; K |
| Iso Code | TCMX 09 02 04-WF 4415 |
| Manufacturers Catalog Number | TCMX 1.8(1.5)1-WF |
| Cutting Direction | Neutral |
| Chip Breaker | X |
| Industry Standard Number | TCMX 09 02 04-WF 4415 |
| Coating/Finish | TiCN; TiN; Al2O3 |
