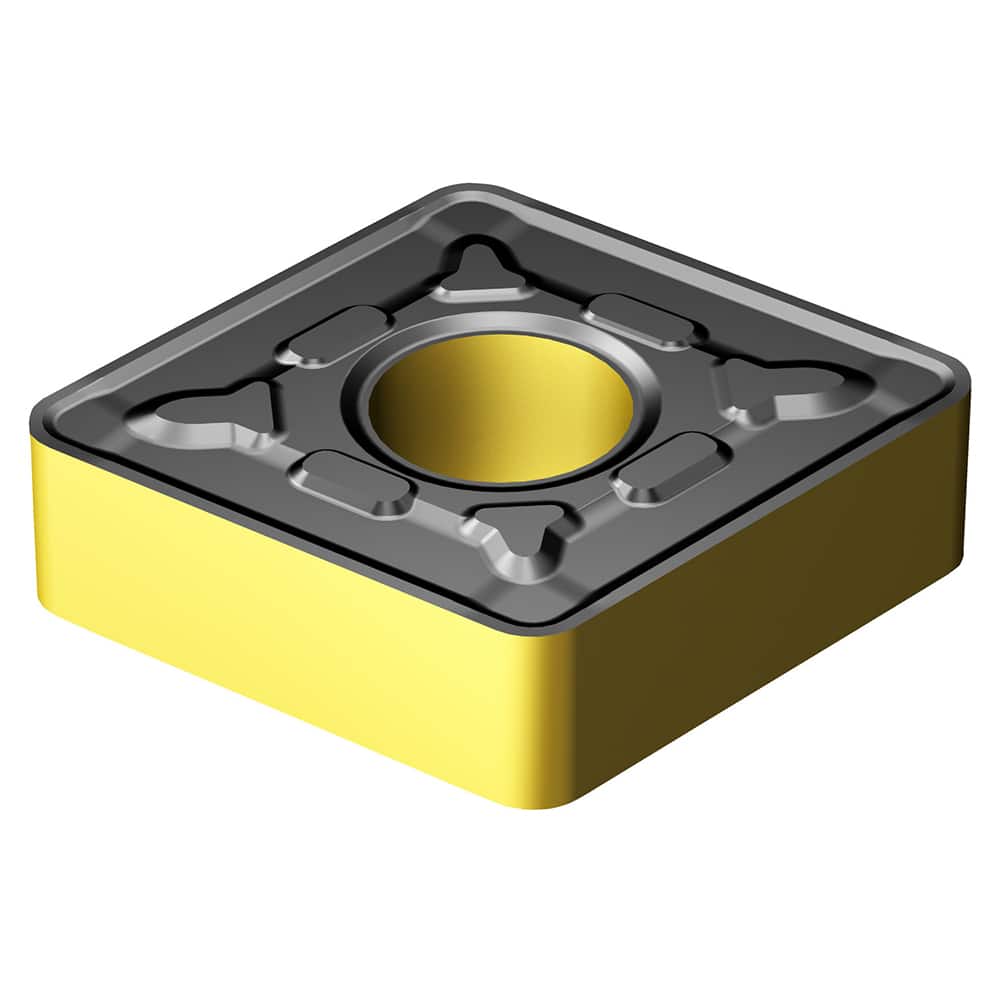

CNMG542-PR 4425 Carbide Turning Insert Al2O3/TiN/TiCN Finish, Neutral, 5/8″ Inscribed Circle, 0.0313″ Corner Radius, 1/4″ Thick, 80° Triangle
Item #: 10205193
Brand: Sandvik Coromant
Model #: 7860996
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 1606 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 4425 |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.35 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | T-Max P |
| Coating Process | CVD |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | CNMG542PR4425 |
| Iso Code | CNMG 16 06 08-PR 4425 |
| Manufacturers Catalog Number | CNMG 542-PR |
| Cutting Direction | Neutral |
| Chip Breaker | PR |
| Industry Standard Number | CNMG 16 06 08-PR 4425 |
| Coating/Finish | TiCN; TiN; Al2O3 |
 | |
| MSC Part # | 10205193 |
| Mfr Part # | 7860996 |
| Country of OriginCountry of Origin is subject to change | UNITED STATES |
