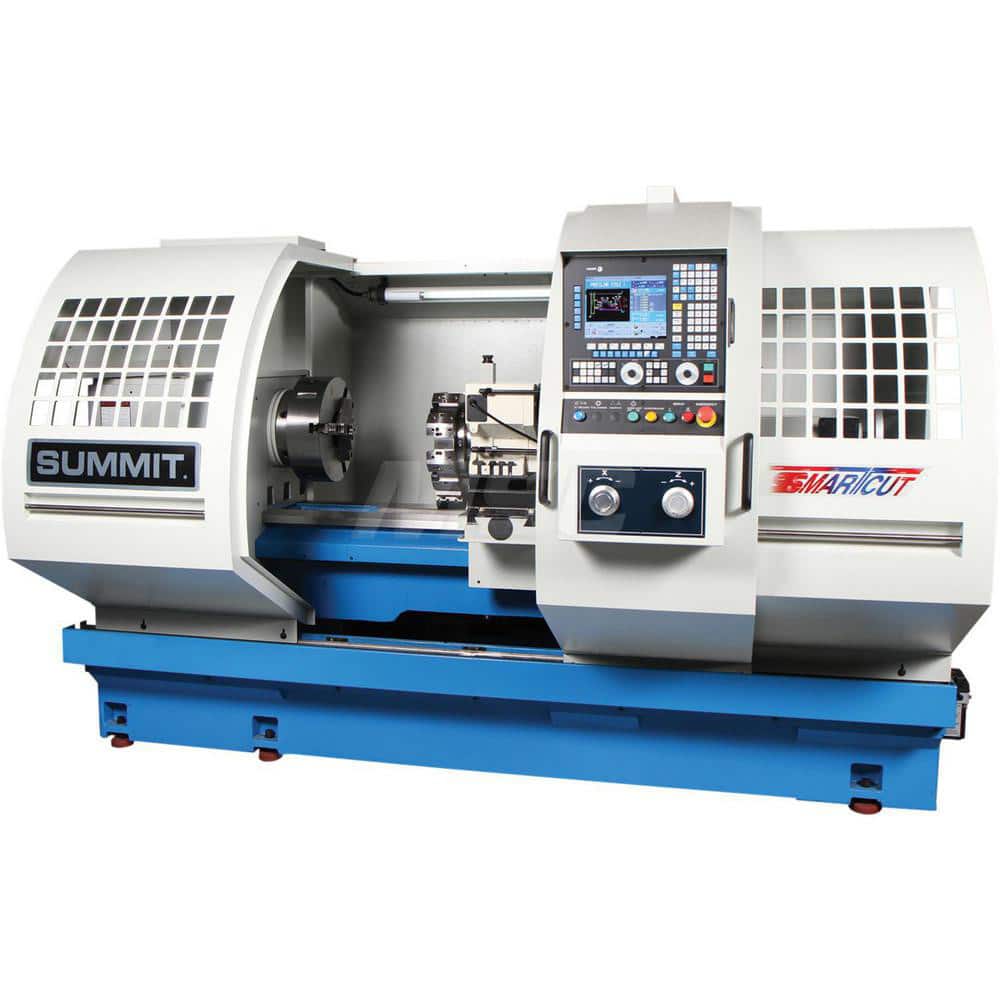

Summit - CNC Lathes; Precision: No ; Swing (Inch): 20 ; Swing (Decimal Inch): 20.0000 ; Swing (mm): 20.00 ; Swing Over Cross Slide (Decimal Inch): 11.5000 ; Swing Over Cross Slide (mm): 11.50 - Exact Industrial Supply

Summit - CNC Lathes; Precision: No ; Swing (Inch): 20 ; Swing (Decimal Inch): 20.0000 ; Swing (mm): 20.00 ; Swing Over Cross Slide (Decimal Inch): 11.5000 ; Swing Over Cross Slide (mm): 11.50


Item #: 10089225
Brand: Summit
Model #: SC20-3X33

Product Specifications

CNC Lathes; Precision: No ; Swing (Inch): 20 ; Swing (Decimal Inch): 20.0000 ; Swing (mm): 20.00 ; Swing Over Cross Slide (Decimal Inch): 11.5000 ; Swing Over Cross Slide (mm): 11.50
Precision No
Swing (Inch) 20
Swing (Decimal Inch) 20.0000
Swing (mm) 20.00
Swing Over Cross Slide (Decimal Inch) 11.5000
Swing Over Cross Slide (mm) 11.50
Swing Over Gap (Inch) 28
Distance Between Centers (mm) 33.00
Distance Between Centers (Inch) 33
Distance Between Centers (Decimal Inch) 33.0000
Bed Width (mm) 330.00
Bed Width (Inch) 13
Bed Width (Decimal Inch) 13.0000
Headstock Taper Size 7MT
Tailstock Taper Size 5MT
Spindle Bore Diameter (mm) 85.00
Spindle Bore Diameter (Decimal Inch) 3.3120
Gap Length (Inch) 15.3
Controller Fagor 855TC
Cross Slide Travel Length (Decimal Inch) 21.6000
Max. Cross Feed Rate Per Revolution (Decimal Inch) 0.0000
Maximum Cross Feed Rate Per Revolution (m/min) 250.00
Max. Longitudinal Feed Rate Per Rev. (in/min) 400.0000
Overall Length (Inch) 140
Overall Height (Inch) 88
Maximum RPM 600
Minimum RPM 4.00
Horsepower (HP) 30
Phase 3
Voltage 230 V
$80,590.34
