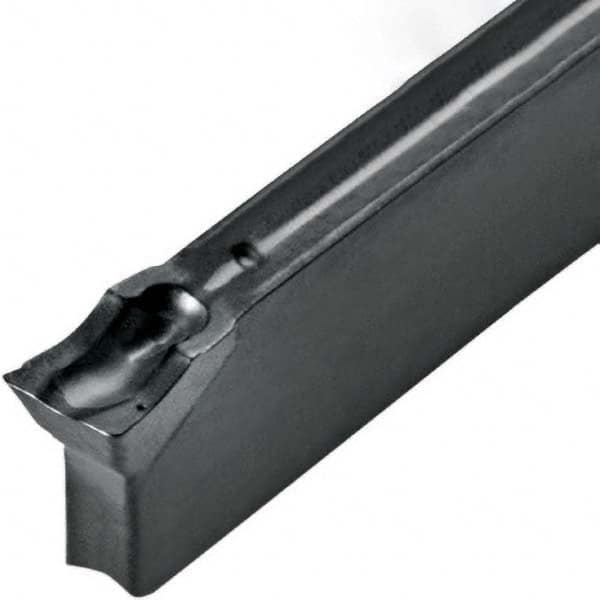

Grooving Insert: SA24E24S1 AP5020, Solid Carbide TiCN Finish, Neutral, 3 mm Cutting Width, 22 mm Max Depth
Item #: 10075414
Brand: Arno
Model #: 97279
Product Specifications
| Insert Style | SA24E |
| Insert Size | 24 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AP5020 |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (mm) | 22.00 |
| Cutting Height (mm) | 5.50 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.0120 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 0 |
| Multi-use Tool | No |
| Coating Process | PVD |
| Overall Length (mm) | 24.00 |
| Manufacturers Catalog Number | SA24E-3003N-S1 AP5020 |
| Cut Condition | Stable |
| Chip Breaker | S1 |
| Insert Seat Size | 24 |
| Coating/Finish | TiCN |
| Number Of Cutting Edges | 1 |
