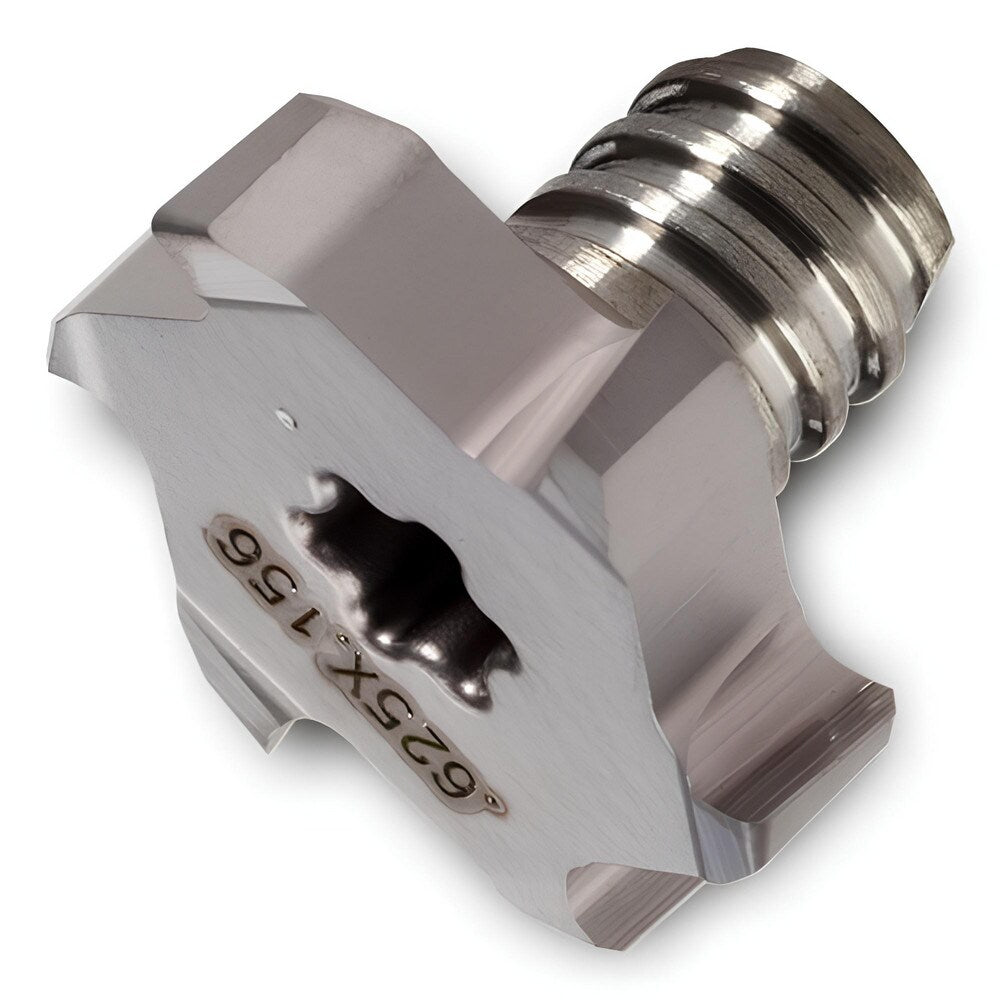

Brand: Ingersoll Cutting Tools / Part #: 5812117
Item #: 59365247
Brand: Ingersoll Cutting Tools
Model #: 5812117
Product Specifications
| Milling Tip Type | T-Slot |
| Milling Tip Style | 18T |
| Maximum Depth of Cut (Decimal Inch) | 0.1800 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Tool Material | Carbide |
| Manufacturer Grade | IN1030 |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | 18T |
| Coating Process | PVD |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Cutting Width (Decimal Inch) | 0.1870 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Thread Size | T10 |
| Manufacturers Catalog Number | 18T-10018TRRN02 |
| Overall Length (Decimal Inch) | 0.2020 |
| Coolant Through | No |
| Included Angle Degree | 90 |
| Depth Of Cut | 0.1800 |
| Coating/Finish | TiCN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2020 |
| Number Of Flutes | 6 |
