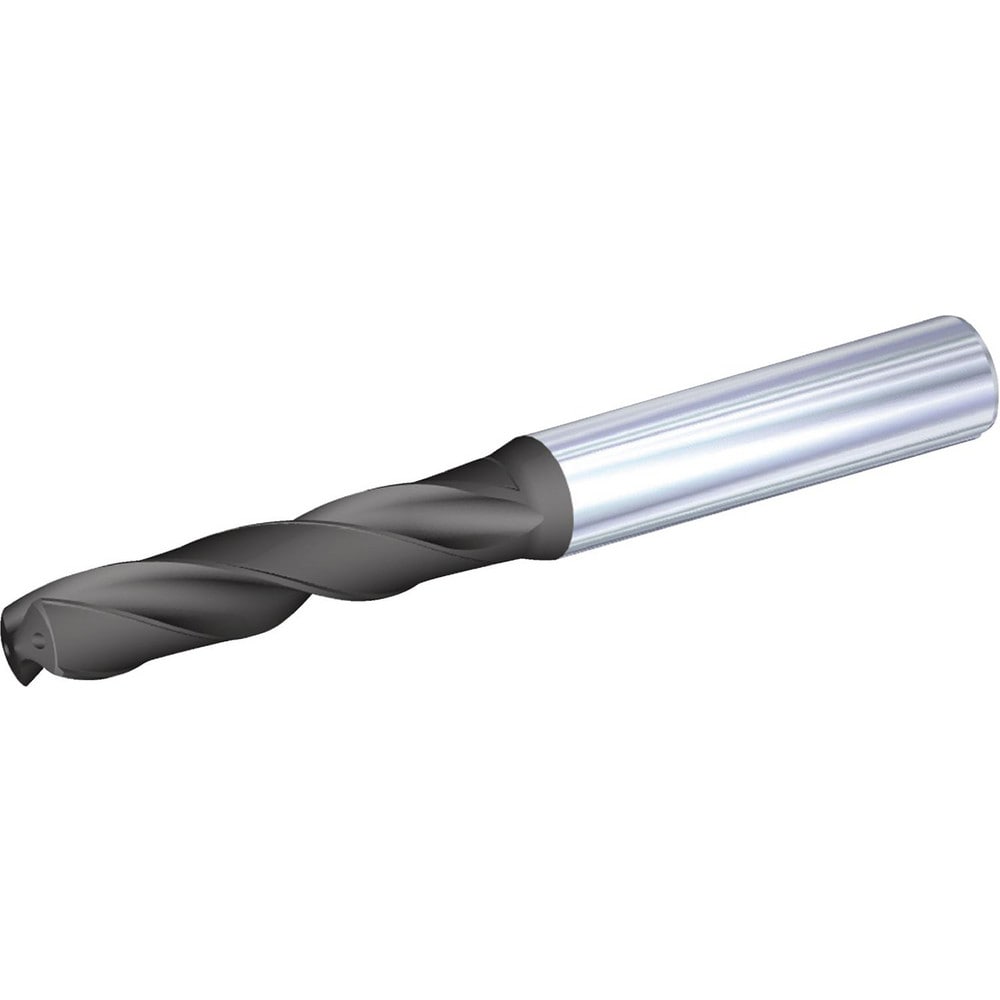

Brand: Widia / Part #: 6327750
Item #: 03633377
Brand: Widia
Model #: 6327750
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1910 |
| Drill Bit Size (Wire) | #11 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | AlTiN |
| Drill Point Angle | 140 |
| Spiral Type | Regular Spiral |
| Flute Type | Helical |
| Point Type | Thinned |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Drill Tip Finish/Coating | AlTiN |
| Overall Length (Decimal Inch) | 2.6000 |
| Series | TDS451 |
| Web Thinning | Web-Thinned |
| Drill Length Type | Screw Machine Length |
| Maximum Drilling Depth (Decimal Inch) | 0.7900 |
| Shank Length (Decimal Inch) | 1.4200 |
| Drill Point Length (Decimal Inch) | 0.0320 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | 0.0002/0.0006 in |
| Flute Length (Decimal Inch) | 1.1000 |
| Drill Bit Grade | High Performance |
| Material Grade | Carbide |
