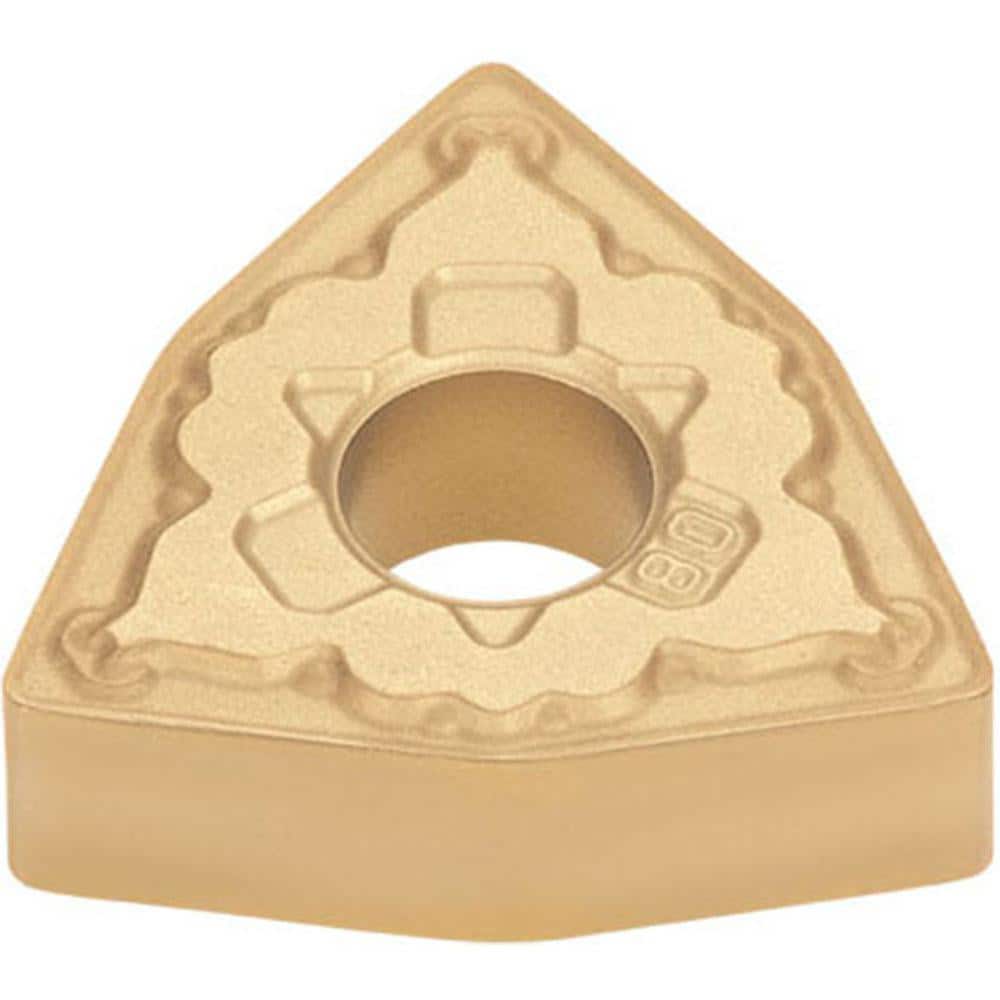

Turning Insert: WNMG432FW GT9530, Cermet TiCNO Finish, Neutral, 0.3430″ Long, 1/2″ Inscribed Circle, 0.0310″ Corner Radius, N/A Trigon, Series WNMG
Item #: 09992587
Brand: Tungaloy
Model #: 6735876
Product Specifications
| Insert Style | WNMG |
| Insert Shape Code | W |
| Insert Size Code | 432 |
| Insert Shape | Trigon |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Cermet |
| Manufacturer Grade | GT9530 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Relief Angle | 0 |
| Series | WNMG |
| Coating Process | PVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.3430 |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Chip Breaker | FW |
| Coating/Finish | TiCNO |
