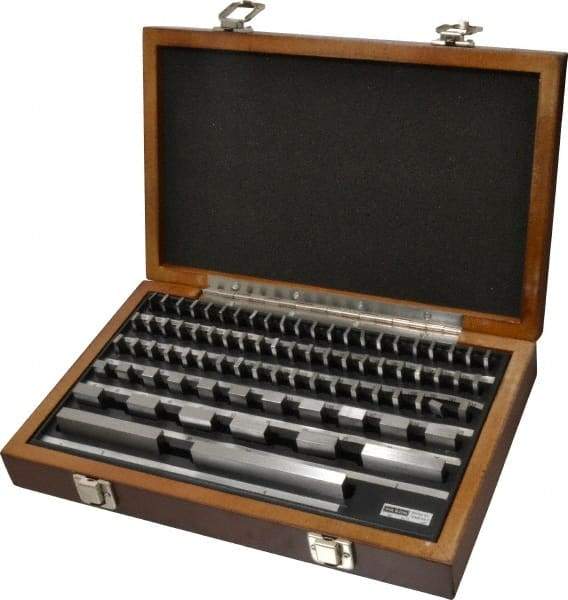

Value Collection - 81 Piece, 0.05 to 4", Grade AS-1, Steel Gage Block Set - Rectangular, 12µ (0.050"), 12µ (0.45-1"), 16µ (2"), 20µ (3"), 24µ (4"), 8µ (0.1-0.4") Tolerance
Item #: 09904533
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Gage Block Set |
| Accuracy Grade | AS-1 |
| Minimum Size (Decimal Inch) | 0.0500 |
| Maximum Size (Decimal Inch) | 4.0000 |
| Number of Pieces | 81 |
| Shape | Rectangular |
| Material | Steel |
| Size (Decimal Inch) | (19) 0.050-0.950 (with 0.05 Step); (4) 1.000-4.000 (with 1.000 Step); (49) 0.101-0.149 (with 0.001 Step); (9) 0.1001-0.1009 (with 0.0001 Step) |
| Tolerance (micro Inch) | 12 (0.050"); 12 (0.45-1"); 16 (2"); 20 (3"); 24 (4"); 8 (0.1-0.4") |
| Step Increments (Decimal Inch) | (19) 0.05; (4) 1.000; (49) 0.001; (9) 0.0001 |
| Certifying Specification | ASME B89.1.9-2002 |
| Individually Serialized | Yes |
| Traceability Certification Included | NIST |
| Includes | Fitted Case |
