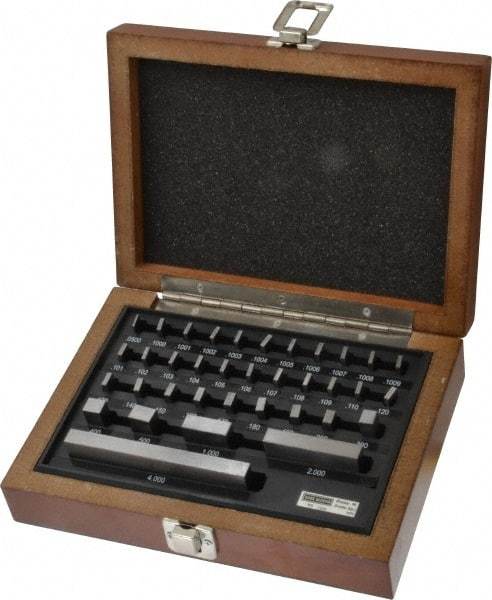

Value Collection - 36 Piece, 0.05 to 4", Grade AS-1, Steel Gage Block Set - Rectangular, 12µ (0.050"), 12µ (0.5-1"), 16µ (2"), 24µ (4"), 8µ (0.1-0.4") Tolerance
Item #: 09900523
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Gage Block Set |
| Accuracy Grade | AS-1 |
| Minimum Size (Decimal Inch) | 0.0500 |
| Maximum Size (Decimal Inch) | 4.0000 |
| Number of Pieces | 36 |
| Shape | Rectangular |
| Material | Steel |
| Size (Decimal Inch) | (1) 0.050; (1) 1.0; (1) 2.0; (1) 4.0; (5) 0.100-0.500 (with 0.100 Step); (9) 0.1001-0.1009 (with 0.0001 Step); (9) 0.101-0.109 (with 0.001 Step); (9) 0.110-0.190 (with 0.010 Step) |
| Tolerance (micro Inch) | 12 (0.050"); 12 (0.5-1"); 16 (2"); 24 (4"); 8 (0.1-0.4") |
| Step Increments (Decimal Inch) | (5) 0.100; (9) 0.0001; (9) 0.001; (9) 0.010 |
| Certifying Specification | ASME B89.1.9-2002 |
| Individually Serialized | Yes |
| Traceability Certification Included | NIST |
| Includes | Fitted Case |
