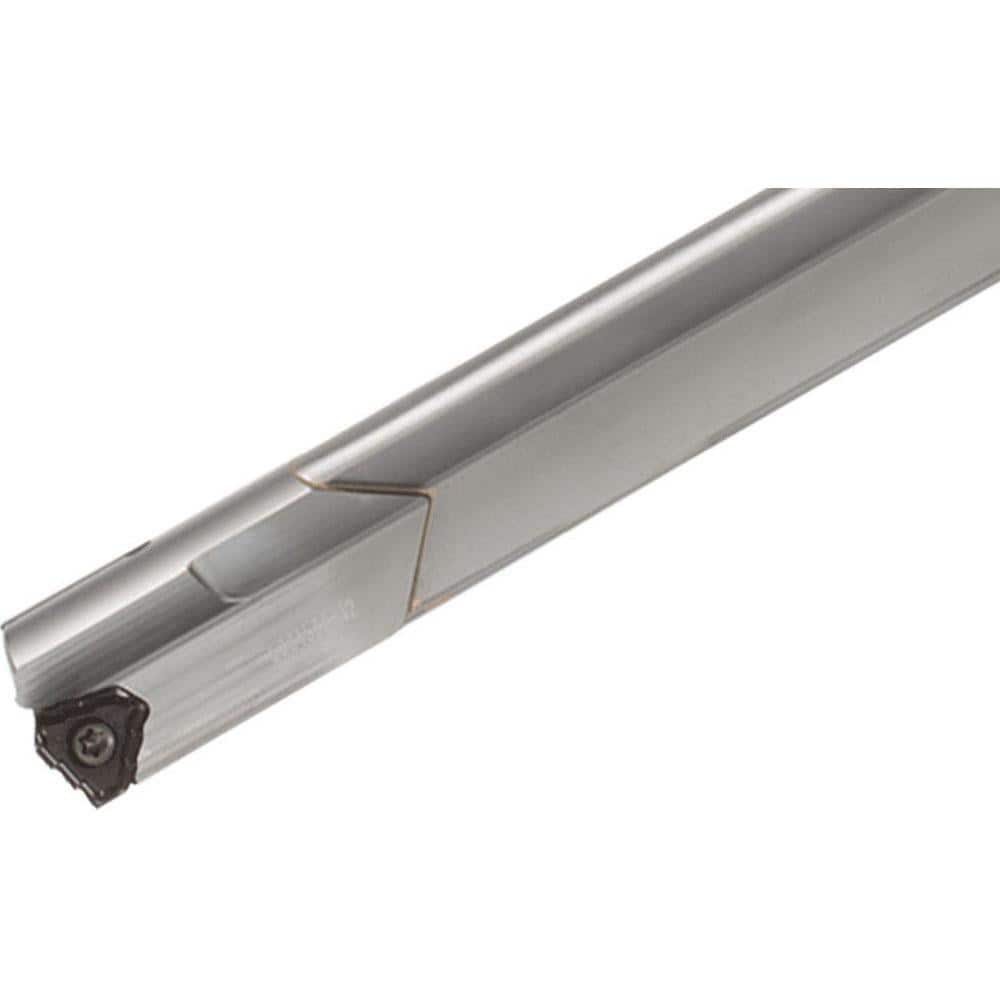

Indexable Insert Drills; Drill Style: TRLG; Maximum Drill Diameter (mm): 25.00; Maximum Drill Depth (mm): 906.40; Shank Type: Combination; Shank Diameter (Inch): 32; Shank Diameter (mm): 32.00; Number of Drill Inserts: 1; Cutting Direction: Right Hand; Ma
Item #: 09518226
Brand: Tungaloy
Model #: 4890272
Product Specifications
| Drill Style | TRLG |
| Maximum Drill Diameter (mm) | 25.00 |
| Maximum Drill Depth (mm) | 906.40 |
| Shank Type | Combination |
| Shank Diameter (Inch) | 32 |
| Shank Diameter (mm) | 32.00 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | TOHT |
| Compatible Insert Size Code | 11 |
| Drill Depth by Diameter Ratio | 36xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 1003.40 |
| Series | TRLG |
| Body Length | 940.00 |
| Shank Length (mm) | 60.00 |
| Minimum Achievable Hole Tolerance | 0.0020 in |
| Maximum Achievable Hole Tolerance | 0.0040 in |
| Tool Application | Drilling |
| Coolant Through | Yes |
