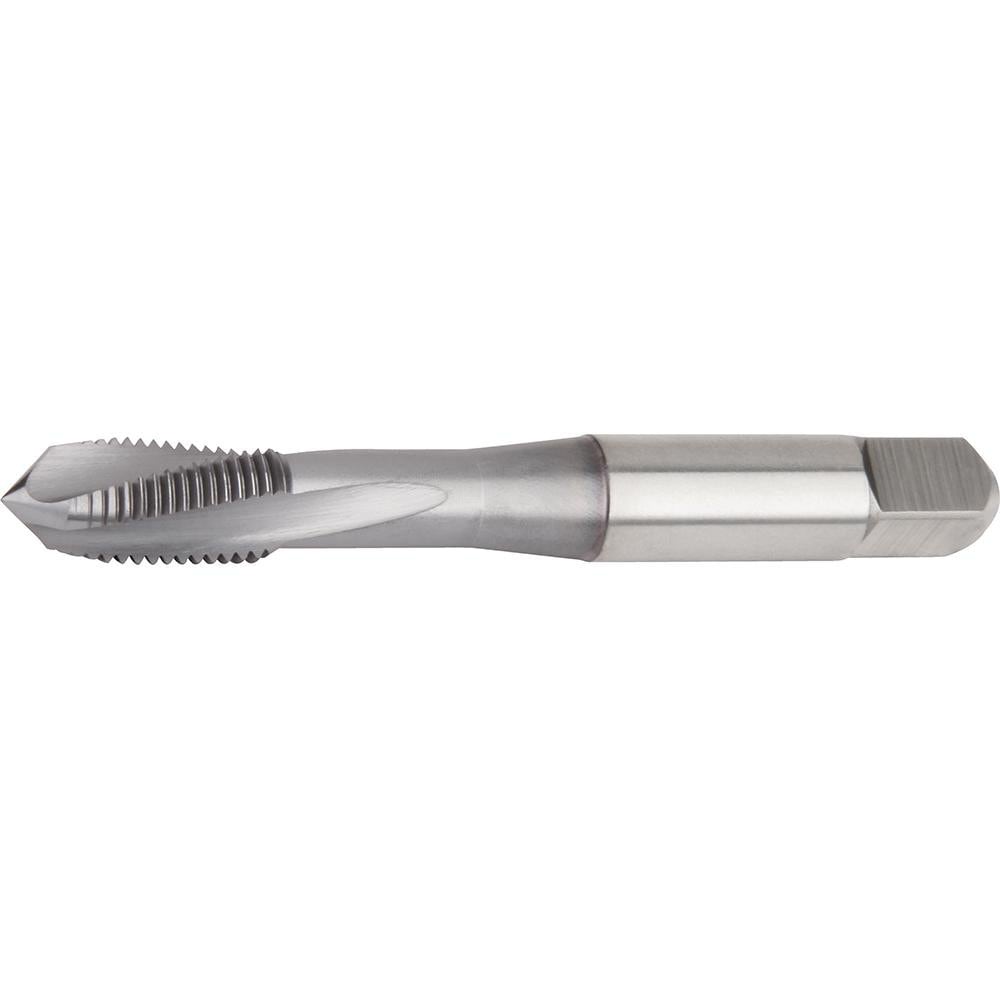

Spiral Flute Tap: 3/8-16 UNC, 3 Flutes, Plug, 3B Class of Fit, Powdered Metal, Nitride/Oxide Coated
Item #: 97342901
Brand: Widia
Model #: 5705057
Product Specifications
| Thread Size (Inch) | 3/8-16 |
| Thread Standard | UNC |
| Chamfer | Plug |
| Material | Powdered Metal |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Coating/Finish | Oxide |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | High-Temperature Alloy |
| Flute Direction | Left Hand |
| Proprietary Coating/Finish | Nitride;Oxide |
| Primary Workpiece Material | High-Temp Alloy |
| Threads per Inch | 16 |
| Thread Length (Decimal Inch) | 0.6000 |
| Overall Length (Decimal Inch) | 2.9500 |
| Thread Pitch (Decimal Inch) | 0.0625 |
| Material Grade | WS39MG |
| Primary Workpiece Material Code | S |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Tapping Depth (Decimal Inch) | 1.2800 |
| Square Size (Decimal Inch) | 0.2840 |
| Series | GT90 |
| UNSPSC Code | 23241600 |
| Country of Origin | UNITED STATES |
