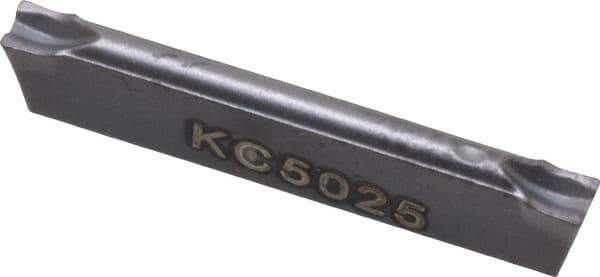

Kennametal - A4C1 CF KC5025 Grade, 0.0591" Cutting Width, Carbide Cutoff Insert - 0° Neutral Lead Angle, 0.0079" Cnr Rad, TiAlN Coated
Item #: 09190984
Brand: Kennametal
Model #: 2972258
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | A4C |
| Insert Size | 1 |
| Lead Angle Direction | Neutral |
| Lead Angle | 0 |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0591 |
| Material Grade | C2/C6 |
| Manufacturer's Grade | KC5025 |
| Coating | TiAlN |
| Series | A4 |
| Relief Angle | 2 |
| Chipbreaker | CF |
| Coating Process | PVD |
| Overall Length (mm) | 15.50 |
| Overall Length (Decimal Inch) | 0.6102 |
| Cutting Height (mm) | 3.23 |
| Cutting Height (Decimal Inch) | 0.1272 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 1 |
